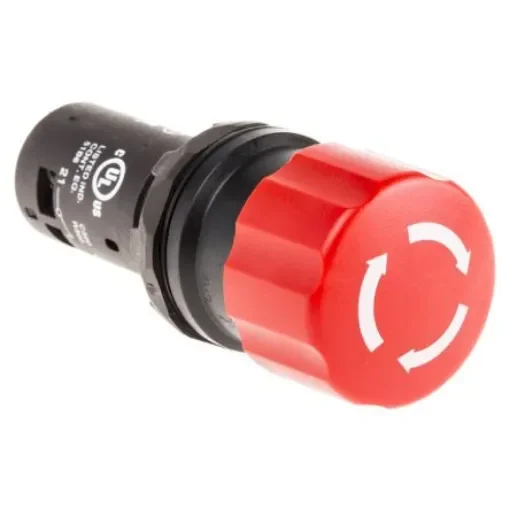

ABB 1SFA Series Twist Release Emergency Stop Push Button, Panel Mount, 22.5mm Cutout, SPDT, IP66, IP67, IP69K - CE3T-10R-11

Mounting Type = Panel Mount
Cutout Diameter = 22.5mm
Contact Configuration = SPDT
Push Button Actuation = Twist ReleaseV dc
Illuminated = No
IP Rating = IP66, IP67, IP69K
Colour = Red
Push Button Shape = mushroom
Supply Current = 1A
Depth = 73mm
Auxiliary Contacts = 1NO/1NC
Width = 30mm
Height = 30mm

ABB Emergency Stop ButtonThe ABB 1SFA series emergency stop pushbutton has a red mushroom style head with the diameter of 30mm. It has a double pole single throw (DPST) contact configuration. This button is made of plastic material. The button has an electrical current rating of 1A and voltage rating of 240VAC.Features and Benefits1NC/1NO normal contact configuration Twist to reset method Non-illuminated Operating temperature ranges between -25°C and 70°C Panel cut-out diameter of 22.5mmApplicationsOEMs Panel builders, contractors, Industrial machines and equipment Control panels and control stations Emergency circuits, alarm and signal equipment Traction equipmentsCertificationsEN50013 EN60947-1 EN60947-5-1 UL approved CSA certified IP66 rated IP67 rated IP69K rated
