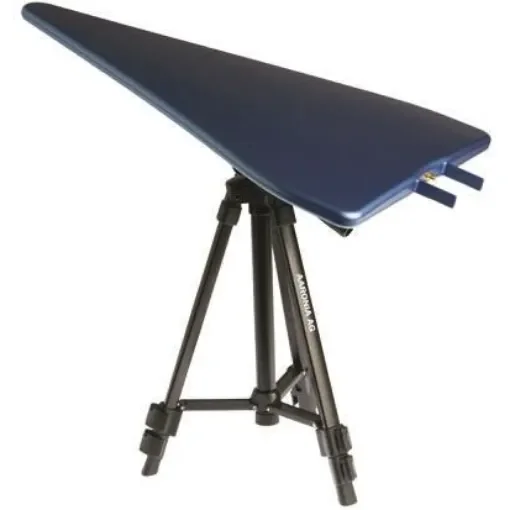

Aaronia Ag 201/009 Broadband EMC Test Antenna, For Use With Spectrum Analyser
High-performance EMC test antenna for accurate spectrum analysis and reliable data storage.
Manufacturer part number: 201/009
Aluminium case and accessories. 10. Aaronia EMC Antennas. These HyperLOG® antennas have a maximum tolerance of as little as 100µm per antenna element. They provide an option for an internal, electronically,readable database that can store all important data such as calibration charts, serial number and antenna model permanently. Using a corresponding spectrum analyzer, this data can be extracted automatically at any later time. Calibration of the entire measurement system then takes place automatically. A radome coating protects the sensitive antenna from moisture, dust and mechanical damage. Flash data memory for optional electronic storage of calibration data and automatic antenna model recognition Nominal impedance 50O Modular, detachable handle and mini-tripod for easy handling when doing measurements on the road Solid 5/8inch (15.875mm) mount for attaching modular handle or generic tripod Custom plastic RF-optimized for precise measurements RF coating for best possible paint absorption and durability RF-optimized paint for the lowest possible damping Device mount for stable attachment of a spectrum analyzer SMA connector
