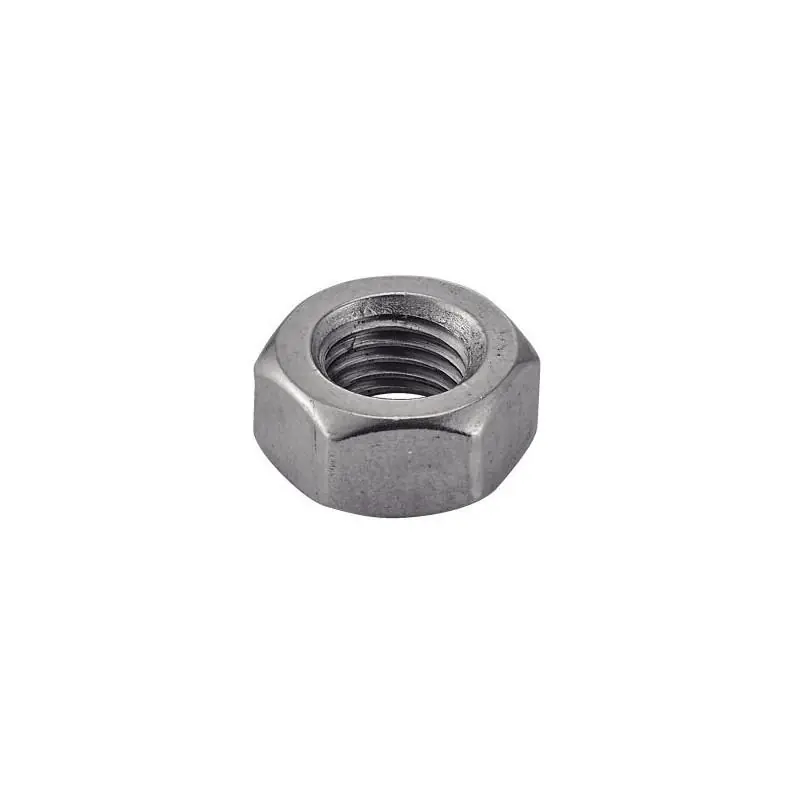

Key Features:
- Material: Crafted from A4 stainless steel, equivalent to SAE Type 316, offering enhanced corrosion resistance, particularly in marine and chemical environments.
- Thread Type: Fine pitch metric threads, suitable for applications requiring precise adjustments and higher load-bearing capacities.
- Standard Compliance: Manufactured according to DIN 934, ensuring compatibility with similar standards such as ISO 4032, NFE 25-401, and UNI 5588.
- Design: Hexagonal shape for easy installation and removal using standard tools.
Technical Specifications:
- Thread Pitch and Nominal Size:
- M8 x 1.25
- M10 x 1.25
- M12 x 1.25
- Material Grade: A4-80 stainless steel, indicating a minimum tensile strength of 800 N/mm².
- Corrosion Resistance: Suitable for use in corrosive environments, including marine applications.
Dimensions:
- M8 x 1.25:
- Across Flats: 13 mm
- Height: 6.5 mm
- M10 x 1.25:
- Across Flats: 16 mm
- Height: 8 mm
- M12 x 1.25:
- Across Flats: 18 mm
- Height: 10 mm
Compatibility Information:
These nuts are compatible with corresponding bolts of the same nominal size and thread pitch, adhering to DIN 934 standards.
Additional Details:
- Applications: Ideal for fastening components in marine, chemical, and other corrosive environments.
- Installation: Designed for use with standard tools, facilitating straightforward installation and maintenance.
