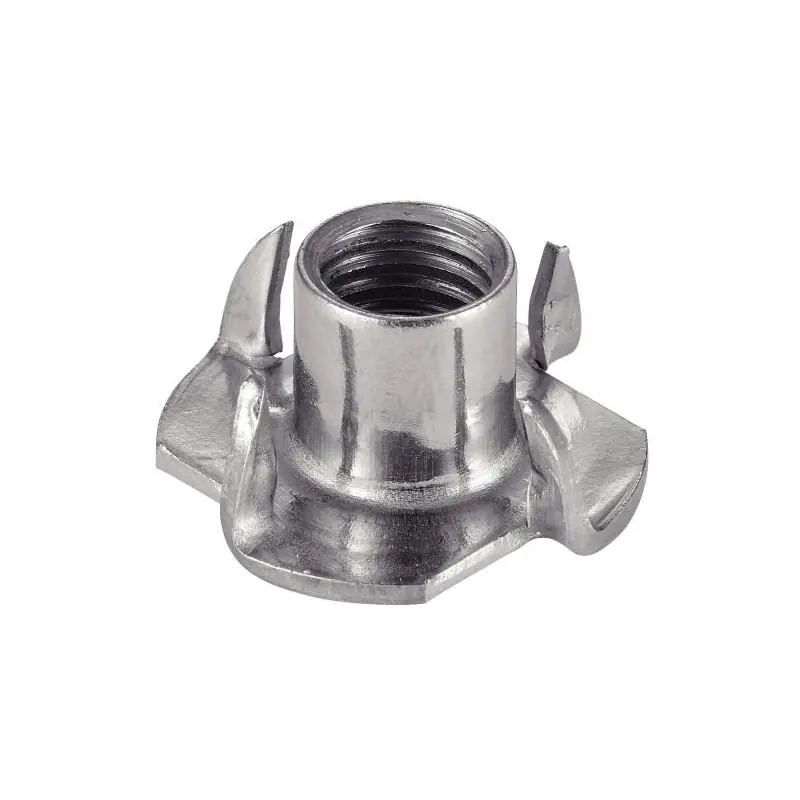

The A2 Stainless Steel Claw Nut, also known as a ratchet nut or serrated nut, is designed to provide additional resistance to the assembly of a screw or bolt. It features claws that engage with the surface of the part to which it is attached, creating additional clamping force and preventing the nut from rotating. This design is particularly beneficial in applications subject to vibrations, dynamic loads, or repetitive movements, such as in machinery, production equipment, automobiles, and aircraft. Additionally, the stainless steel construction offers high corrosion resistance and good heat resistance, making it suitable for use in corrosive environments.
- Enhanced Clamping Force: Claws engage with the surface to provide additional resistance against rotation.
- Vibration Resistance: Ideal for applications exposed to vibrations and dynamic loads.
- Corrosion Resistance: Made from A2 grade stainless steel, offering high resistance to corrosion.
- Heat Resistance: Suitable for environments with varying temperatures.
Technical Specifications:
- Material: Stainless Steel A2 (304 grade)
- Thread Type: Metric
- Thread Pitch: Varies by size (e.g., M5: 0.8, M6: 1, M8: 1.25, M10: 1.5)
- Dimensions:
- M5: Diameter (d): 5 mm, Pitch: 0.8 mm, d1: 6.2 mm, h: 8 mm, m: 5.5 mm, s: 17 mm
- M6: Diameter (d): 6 mm, Pitch: 1 mm, d1: 7.5 mm, h: 9 mm, m: 7 mm, s: 19 mm
- M8: Diameter (d): 8 mm, Pitch: 1.25 mm, d1: 9.7 mm, h: 11 mm, m: 9.8 mm, s: 22 mm
- M10: Diameter (d): 10 mm, Pitch: 1.5 mm, d1: 11.4 mm, h: 12 mm, m: 9.8 mm, s: 25 mm
Compatibility Information: The A2 Stainless Steel Claw Nut is compatible with screws or bolts of corresponding metric sizes. Ensure that the thread pitch and diameter of the nut match those of the screw or bolt to achieve a secure fastening.
