Key Features:

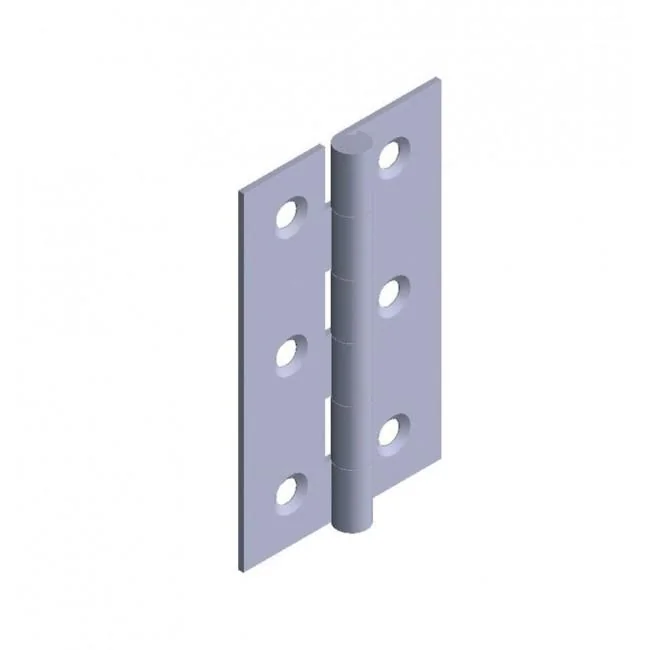

- Rectangular hinge design with a rolled knot mechanism.
- Constructed from A2 grade stainless steel, offering high corrosion and heat resistance.
- Countersunk design for a flush installation.
- Rolled knot hinge type for discreet and durable mounting.
Technical Specifications:
- Dimensions:
Length (A): 90 mm
Width (B): 50 mm
- Countersink Dimensions:
Diameter (Ø): 6 mm
- Screw Dimensions:
Diameter (Ø): 4 mm
Countersink depth (c): 4.5 mm
Pin length (d): 1.5 mm
Materials:
- A2 grade stainless steel (304 grade), containing approximately 18% chromium and 8% nickel.
Compatibility Information:
- Suitable for doors and windows requiring a robust and discreet hinge solution.
- Ideal for applications where corrosion resistance is essential.
Additional Details:
- The rolled knot hinge is mounted on the outside of the door and frame, with two parts each featuring a rolled knot that fits into the other, creating the pivot axis.
- When the door is closed, the rolled knot is fully inserted into the other part, making it less likely to get caught or damaged.
- The countersunk design ensures a flush installation, enhancing the aesthetic appeal.
