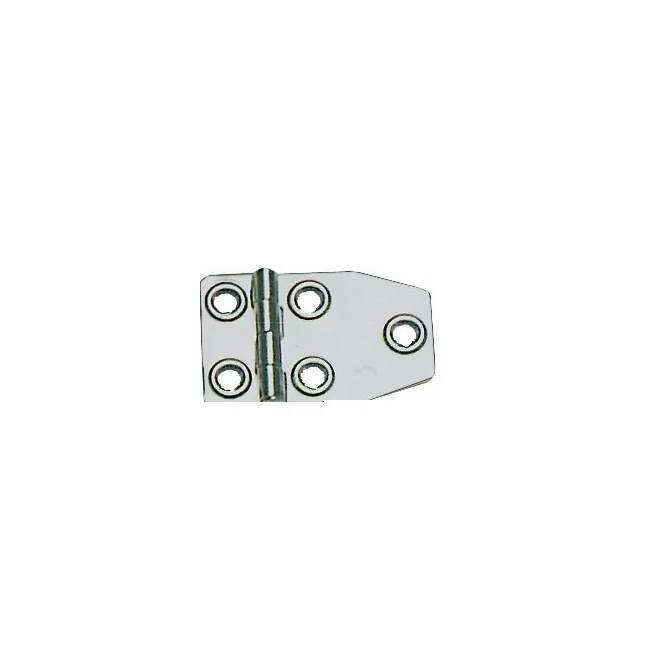

Key Features:
- Constructed from A4 grade stainless steel, offering enhanced corrosion resistance.
- Features a rolled knot design for a discreet and secure hinge mechanism.
- Polished finish for an aesthetically pleasing appearance.
Technical Specifications:
- Material: A4 grade stainless steel (1.4401), known for its acid resistance and suitability in chlorinated environments.
- Design: Rolled knot hinge, mounted on the exterior of the door and frame, with two interlocking parts forming the pivot axis.
- Finish: High-gloss polished.
Dimensions:
- Length (A): 73 mm
- Width (B): 46 mm
- Thickness: 1.5 mm
Compatibility Information:
- Suitable for doors and windows requiring a durable and discreet hinge solution.
- Ideal for applications in marine environments, food industry settings, and areas exposed to corrosive elements.
Additional Details:
- The rolled knot design ensures that when the door is closed, the hinge is fully concealed, reducing the risk of catching or damage.
- A4 stainless steel is commonly used in the cellulose industry and shipbuilding due to its resistance to boiling sulfuric acid and chlorinated environments.
