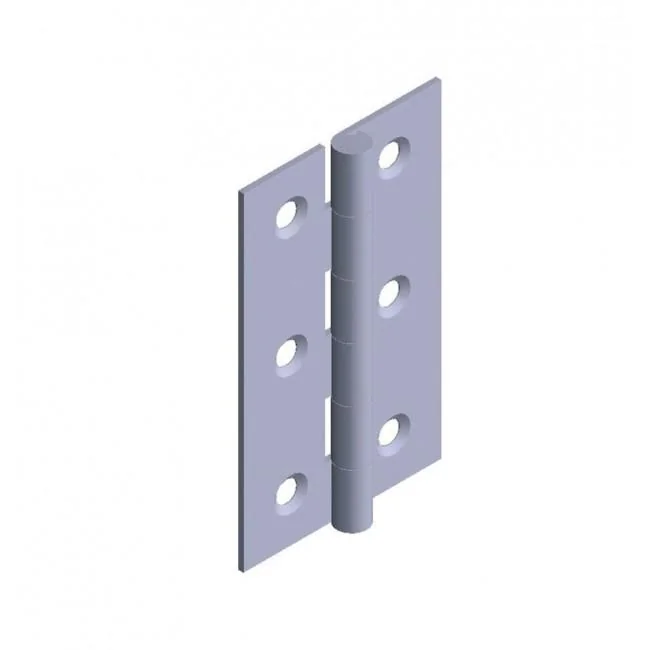

Key Features:
- Material: Constructed from A2 grade stainless steel, also known as 304 stainless steel, offering high corrosion resistance and good heat resistance.
- Design: Features a rolled knot design, which is more resistant and durable compared to protruding knot hinges due to its sturdier construction.
- Countersunk: Designed with countersunk holes for a flush finish when installed.
Technical Specifications:
- Dimensions: 70 mm x 40 mm
- Thickness (c): 4 mm
- Pin Diameter (d): 1.2 mm
- Screw Hole Diameter (Ø of screw): 3.5 mm
- Countersink Diameter (Ø of countersink): 6 mm
Materials:
- Stainless Steel A2: Contains approximately 18% chromium and 8% nickel, providing high corrosion resistance and good heat resistance.
Compatibility Information:
- Material Compatibility: Suitable for doors or windows made of materials compatible with stainless steel hinges.
- Installation: Designed for easy installation with countersunk holes for a flush finish.
Additional Details:
- Rolled Knot vs. Protruding Knot Hinges: Rolled knot hinges are more resistant and durable than protruding knot hinges due to their sturdier construction. The choice between these two types depends on the specific needs of each project.
