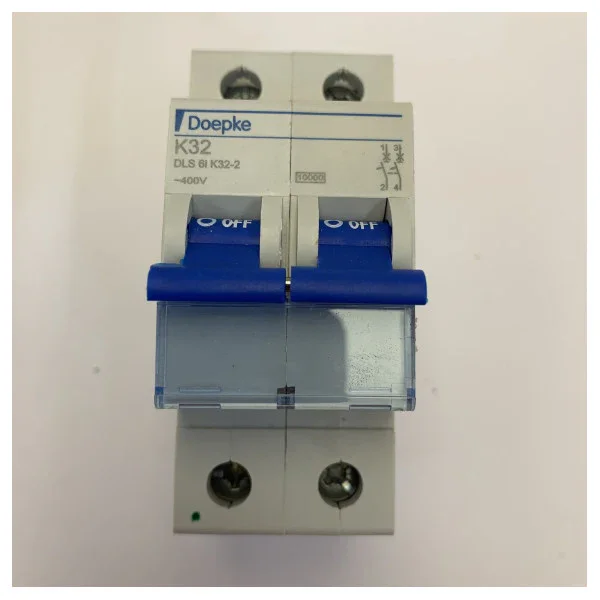

Doepke DLS6i K32-2 Marine Circuit Breaker - 2-Pole 32A
The Doepke DLS6i K32-2 is a high-quality circuit breaker specifically designed for use in demanding environments, such as the marine sector and shipbuilding. This two-pole circuit breaker provides reliable protection against overload and short circuits, ensuring the safety of your electrical systems on board.
Why choose the Doepke DLS6i series?
This circuit breaker stands out due to its robust construction and high switching capacity. Thanks to the K-characteristic, this model is particularly suitable for circuits with high inrush currents, which often occur with motors or transformers in a marine setting. The compact design ensures that the circuit breaker is easy to install in standard distribution boards.
Key features and benefits
- High Reliability: Specially selected for marine applications where vibrations and varying temperatures play a role.
- Optimal Protection: The K-curve prevents unwanted tripping during short-term peak loads while maintaining safety.
- Easy Installation: Designed for quick mounting on standard DIN rails.
- Durability: Built with industrial-grade materials for a long lifespan under harsh conditions.
Technical Specifications
Below you will find the detailed technical properties of the Doepke DLS6i K32-2:
FeatureSpecificationBrandDoepkeModelDLS6i K32-2 MarineNumber of poles2-PoleRated current32 AmperesTripping characteristicK-CurveRated voltage400 Volts ACSwitching capacity10 kA (according to EN 60898)Mounting methodDIN railProtection classIP20 (after installation)ApplicationMarine, Shipping and Industry
