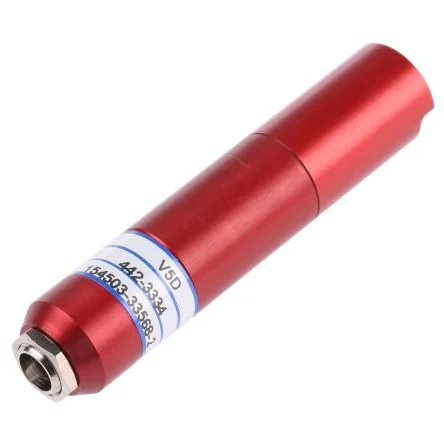

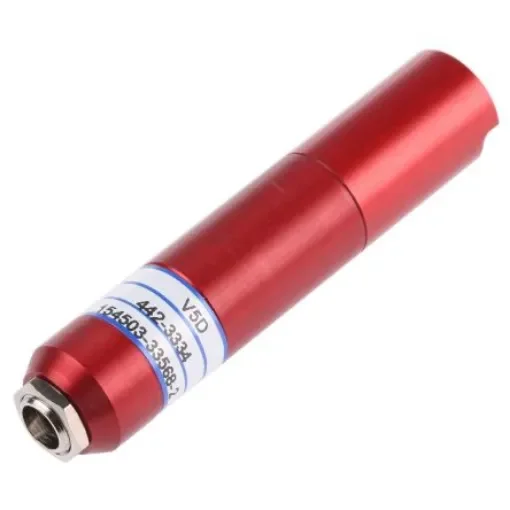

5200-50-000 Laser Module, 650nm 1mW, Continuous Wave Dot pattern
The Global Laser 5200-50-000 is a 650nm continuous wave laser module designed for precise alignment.
Manufacturer part number: 5200-50-000
Availability: Out of stock
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Laser Type = Continuous Wave
Laser Colour = Red
Emission Pattern = Dot
Laser Wavelength = 650nm
Optical Output Power = 1mW
Laser Class = 2
Dimensions = 14.15 (Dia.) x 69mm
Application = Alignment
Diameter = 14.15mm
Length = 69mm
Series = LaserLyte
These laser diode modules are OEM devices and conform to the emission criteria of BS (EN) 60825. It is recommended that this standard and the Data Sheet are read before these lasers are used. Serious eye damage may result if any laser of 1mW or above is pointed directly at the eye. Universal mains power supply (PS-1), 1.5m electrical lead, heavy duty mounting clamp, brackets (combo set – all brackets) and focus key. LaserLyte Alignment Laser V Series Kits. Plug ; Play laser alignment system: simple to use Wide range of projections: dot, variable-length line, 90° cross, line + dot Adjustable focus range: 6mm to infinity Connector: DC power jack Reverse polarity protection
