Key Features:
- Constructed from A2 grade stainless steel, offering high corrosion and heat resistance.
- Rolled knob design for a discreet and secure door closure.
- Suitable for various applications, including marine environments.
Technical Specifications:

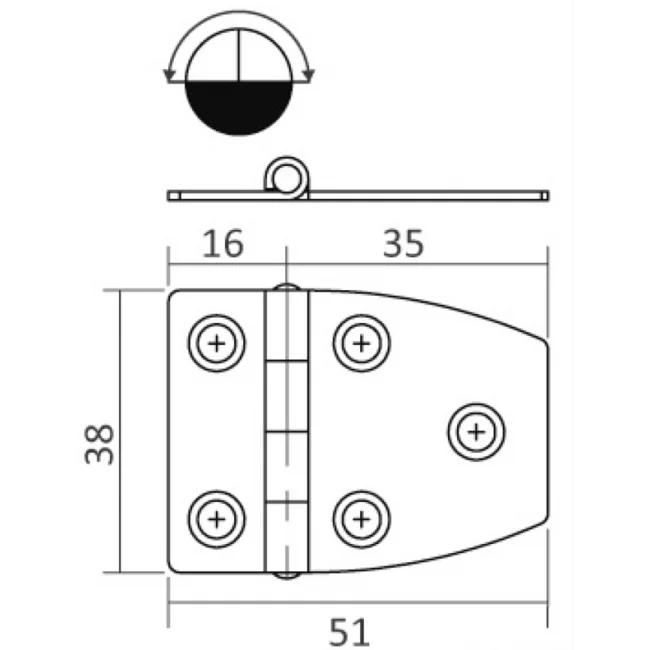

- Dimensions: 51.5 mm x 38 mm
- Thickness: 1.7 mm
- Material: A2 grade stainless steel (18% chromium, 8% nickel)
Materials:
- A2 grade stainless steel, also known as 304 grade, providing high corrosion resistance and good heat resistance.
Dimensions:
- 51.5 mm x 38 mm
- Thickness: 1.7 mm
Compatibility Information:
- Designed for doors and windows, particularly in marine environments.
- Ensure compatibility with the material of the door or window.
Additional Details:
- Rolled knob hinges are mounted on the outside of the door and frame, with two parts each having a rolled knob that fits into the other, creating the pivot axis for the door.
- When the door is closed, the rolled knob is completely inserted into the other part of the hinge, making it more discreet and less likely to get caught or damaged.
- Projection knob hinges are often considered more aesthetically pleasing than rolled knob hinges, as they are practically invisible once the door is closed.
- However, rolled knob hinges may be more robust and durable than projection knob hinges due to their sturdier construction.
- The choice between these two types of hinges will depend on the specific needs of each project.
