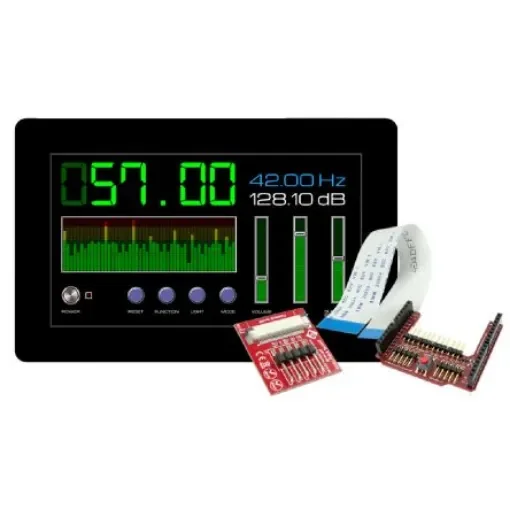

4D Systems gen4-uLCD-70DCT-CLB-AR TFT LCD Colour Display / Touch Screen, 7in, 800 x 480pixels

4D Systems LCD DisplayThe 4D Systems gen4 series LCD offers a compact and easy to integrate display solution. This 7in, 800 x 480 pixels variant features 4-wire capacitive touch with Arduino for applications requiring a human-machine interface. The design makes it simple to integrate into a final product. Its display module features a 30-pin ZIF socket to provide an easy connection to an application or motherboard, removing wiring headaches. If space is at a premium the connected board can sit flush on the back of the module as the display circuitry fits comfortably within the mounting base, maintain a slim profile. A micro-SD card connector provides optional multimedia storage and data logging capabilities. The 4D Systems Diablo16 processor, an embedded controller that provides built-in graphics, text, image and animation capability, powers it. It is fully compatible with the 4D Systems Workshop4 IDE, giving programmers the flexibility of 4 differing development environments.Features and BenefitsRGB 65k true to life colours Compact – Module dimensions 187mm x 102.1mm x 8.3mm (including mounting tabs) 6 banks of 32KB Flash memory for user application code and data 32KB of user RAM 16 GPIO including 4 configurable analogue outputs 3 x I2C channels 3 x SPI channels Up to 6 GPIO can be used as pin counters Up to 6 GPIO for PWM Up to 10 GPIO for pulse output Up to 14 GPIO can be configured for quadrature encoder inputs (2 channels) 30-pin FPC connection for signals, power, communications, GPIO and programming micro-SD card connector for multimedia storage and data logging Dedicated PWM audio pin Supports all the Windows fonts Operating voltage ranging between 4.0V and 5.5VCertificationsCE certified
