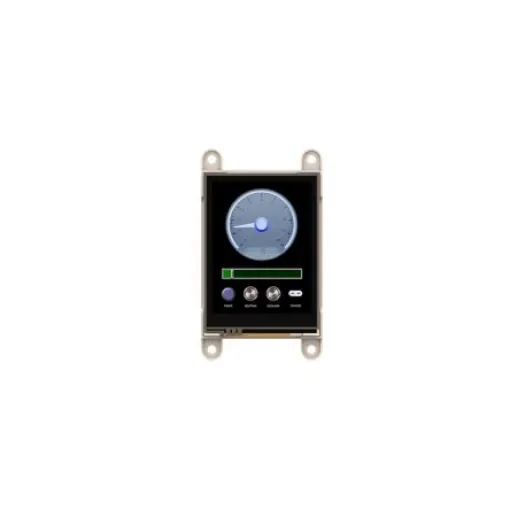

4D Systems gen4-uLCD-24PT-AR TFT LCD Display Module / Touch Screen, 2.4in, 240 x 320pixels

Diagonal Display Size = 2.4in
Resolution = 240 x 320pixels
Touch Screen = Yes
Viewing Area Dimensions = 49 x 37mm
Touch Screen Type = Resistive
Backlight Type = LCD
Display Mode = Transmissive
AC or DC Input Voltage = dc
Dimensions = 44.8 x 7.2 x 78.4mm
Display Matrix Technology = TFT
Minimum Operating Temperature = -20°C
Maximum Operating Temperature = +70°C
Brightness = 182cd/m²
Viewing Area Width = 36.72mm

4D Systems LCD Display ModuleThe 4D Systems LCD 2.4in display module with an integrated 4-wire resistive touch panel is designed specifically for ease of integration and use, with careful consideration for space requirements and functionality. This module is embedded with PICASO processor and hardware interface for Arduino. It has 240 x 320 pixels resolution and 182cd/m² brightness. The display module offers an active viewing area with a width of 48.96mm and height of 36.72mm.Features and Benefits• Built-in extensive 4DGL graphics and system library functions • Dedicated PWM audio pin driven by WAV files from micro-SD card and for sound generation for an external amplifier • Display full colour images, animation, icons and video clips • DOS compatible file access (FAT16 format) as well as low level access to card memory • On-board latch type micro-SD memory card connector for multimedia storage and data logging purposes • RGB 65K true to life colours • Universal Intelligent LCD-TFT display module powered by the Picaso processorCertifications• CE compliant • REACH compliant
