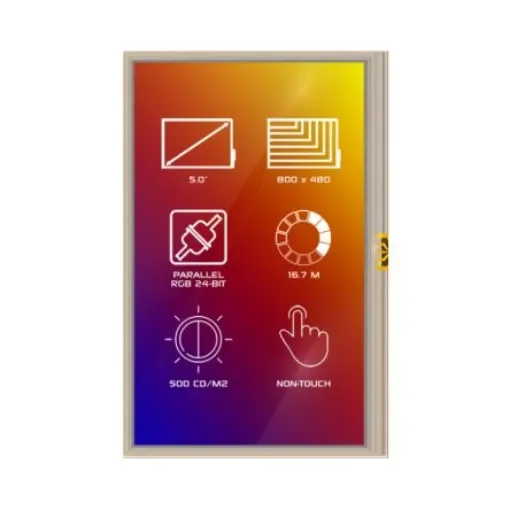

4D Systems 4DLCD-50800480-IPS TFT TFT LCD Display, 5in, 800 x 480pixels
The 4D Systems 5in TFT LCD Display offers 800x480 resolution and high brightness for clear visuals.
Manufacturer part number: 4DLCD-50800480-IPS
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Diagonal Display Size = 5in
Interface Type = 24-bit
Resolution = 800 x 480pixels
Touch Screen = No
Viewing Area Dimensions = 108 x 64.8mm
Touch Screen Type = None
Backlight Type = LED
Display Mode = Transmissive
Dimensions = 120.70 x 75.80 x 2.90mm
Display Matrix Technology = TFT
Minimum Operating Temperature = -20°C
Maximum Operating Temperature = +70°C
Brightness = 600cd/m²
Viewing Area Width = 108mm
The 4D Systems color active-matrix LCD module incorporating amorphous silicon TFT IPS (Thin Film Transistor). It is composed of a color IPSTFT-LCD panel, driver IC, FPC and a backlight unit. The module display area contains 800x480 pixels. This is a Raw TFT Display, it features no processor and cannot be programmed directly. It needs to be coupled with a Processor and circuitry capable of driving this type of display. For complete modules ready to go, please refer to our Intelligent Display Module products.RoHS compliant LED backlight Operating temperature range from -20 to +70°C Non-Touch IPS Panel with wide viewing angles
