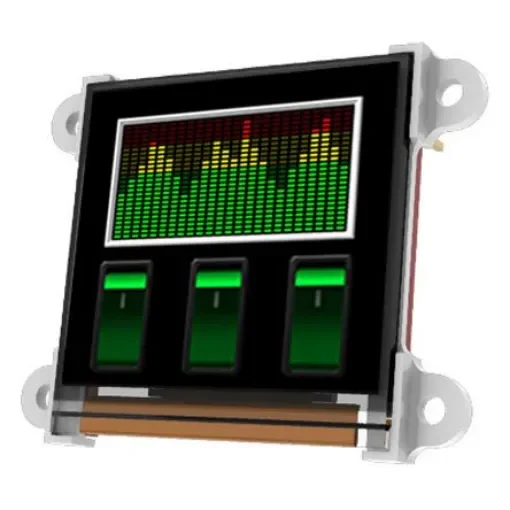

4D Systems 1.5in White Passive matrix OLED Display 128 x 128pixels Matrix Serial Interface - UOLED-128-G2

Diagonal Display Size = 1.5in
Viewing Area Dimensions = 27 x 27mm
Matrix Type = Passive
Display Colours = White
Resolution = 128 x 128pixels
Number of Colours = 65,536
Contrast Ratio = 5000:1
Driver Mounting = Matrix
Interface Ports = Serial
Dimensions = 45.5 x 36 x 13.7mm
Depth = 13.7mm
Height = 36mm
Maximum Operating Temperature = +70°C
Power Dissipation = 1W

Passive Matrix microOLED Modules with GOLDELOX processor, 4D Systems. 4D Systems' range of passive matrix microOLED modules with GOLDELOX processor come in three sizes: 0.96 inch, 1.5 inch and 1.7 inch. Each of the modules benefits from an embedded GOLDELOX graphics controller that is driven by Extensible Virtual Engine (EVE). GOLDELOX contains lots of features that enable you to display full colour images, animations, icons and videos on your microOLED. You also have access to Workshop4 IDE for software development and coding using the 4DGL graphics language. Features ; Benefits: 0.96 inch microOLED — ; 9028672 9028672 •Digital I/O features such as A/D converter, sound generation, RTTTL sound engine, joystick, buttons and Dallas 1-Wire devices •Dimensions: 26 mm x 21 mm x 13.2 mm •Viewing area: 20.1 mm x 13.4 mm •96 x 64 resolution •Up to 65k colours •10 KB of flash memory •510 B of RAM •1 asynchronous hardware serial port •microSD memory card adaptor •Supports Windows fonts and characters •Suitable for a 4.0 V to 5.5 V power supply •Back plate with 4 x 3mm holes for mounting 1.5 inch microOLED — ; 9028675 9028675 •Digital I/O features such as A/D converter, sound generation, RTTTL sound engine, joystick, buttons and Dallas 1-Wire devices •Dimensions: 45.5 mm x 33.5 mm x 6.1 mm •Viewing area: 27 mm x 27 mm •128 x 128 resolution •Up to 65k colours •10 KB of flash memory •510 B of RAM •1 asynchronous hardware serial port •microSD memory card adaptor •Supports Windows fonts and characters •Suitable for a 4.0 V to 5.5 V power supply •Back plate with 4 x 3mm holes for mounting 1.7 inch microOLED — ; 9028678 9028678 •Digital I/O features such as A/D converter, sound generation, RTTTL sound engine, joystick, buttons and Dallas 1-Wire devices •Dimensions: 52 mm x 32 mm x 6.1 mm •Viewing area: 33.6 mm x 27 mm •160 x 128 resolution •Up to 65k colours •10 KB of flash memory •510 B of RAM •1 asynchronous hardware serial port •microSD memory card adaptor •Supports Windows fonts and characters •Suitable for a 4.0 V to 5.5 V power supply •Back plate with 4 x 3mm holes for mounting
