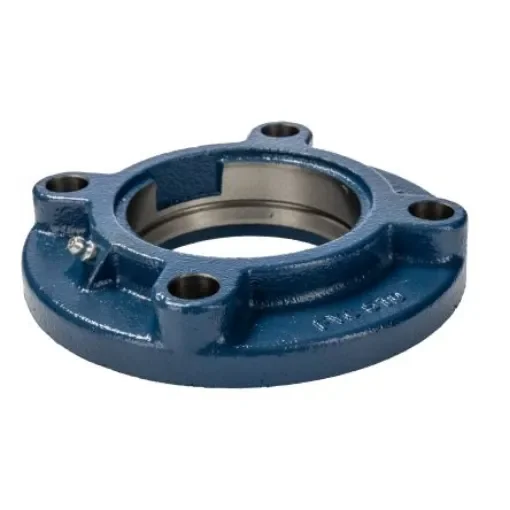

4 Hole , FYC 508, 80mm ID
Durable SKF Y-bearing unit with 80mm inside diameter and 4 mounting holes for easy installation.
Manufacturer part number: FYC 508
GTIN: 7316570259766
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Inside Diameter = 80mm
Number of Mount Holes = 4
Material = Cast Iron
Length = 145mm
Width = 36mm
Mount Hole Size = 14 mm
Mount Hole Centre-to-Centre = 120mm
The SKF FY housing shape (Y-bearing) ball bearing units consist of an insert bearing mounted in a housing which can be bolted to support surface. The insert bearing unit has 80mm inside diameter and 145mm overall length. It is based on sealed deep groove ball bearings in the 62 and 63 series but have a convex outer ring and in most cases an extended inner ring with a specific locking device, enabling quick and easy mounting onto the shaft.Cylindrical type bore
