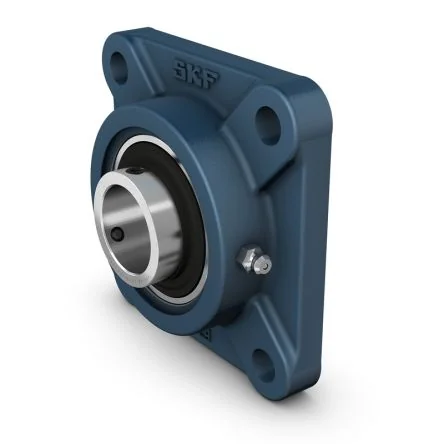

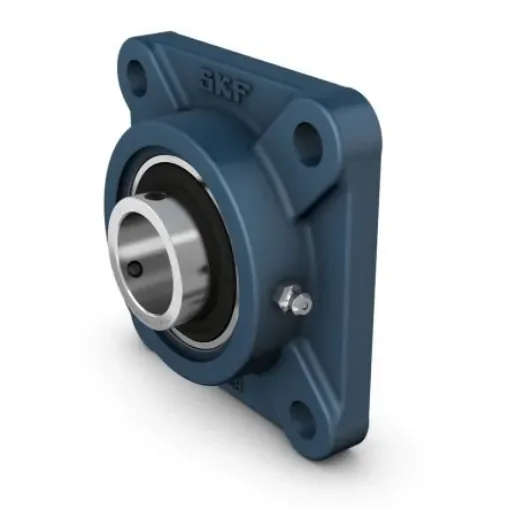

4 Hole , FY 40 TR, 40mm ID

Inside Diameter = 40mm
Number of Mount Holes = 4
Length = 130mm
Width = 46.4mm
Depth = 54.2mm

The SKF FY housing shape (Y-bearing) ball bearing units consist of an insert bearing mounted in a housing which can be bolted to support surface. The insert bearing unit has 40mm inside diameter and 130mm overall length. It is based on sealed deep groove ball bearings in the 62 and 63 series but have a convex outer ring and in most cases an extended inner ring with a specific locking device, enabling quick and easy mounting onto the shaft.Cylindrical type bore
