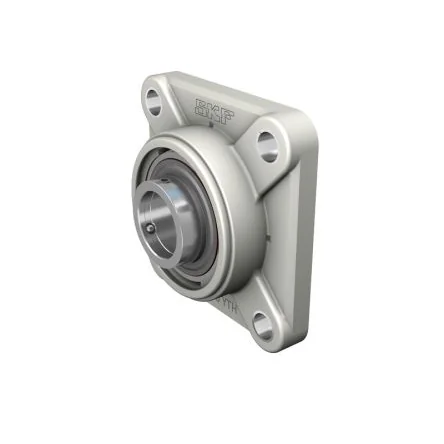

4 Hole Flange Bearing Unit, FYWK 40 YTH, 40mm ID

Inside Diameter = 40mm
Bearing Unit Type = Flange Bearing Unit
Number of Mount Holes = 4
Material = Composite, Stainless Steel
Length = 130mm
Width = 54.2mm
Depth = 54.2mm
Mount Hole Size = 14.8 mm
Mount Hole Centre-to-Centre = 101.5mm

The SKF FY housing shape (Y-bearing) ball bearing units consist of an insert bearing mounted in a housing which can be bolted to support surface. The insert bearing unit has 40mm inside diameter and 130mm overall length. It is based on sealed deep groove ball bearings in the 62 and 63 series but have a convex outer ring and in most cases an extended inner ring with a specific locking device, enabling quick and easy mounting onto the shaft.Cylindrical type bore
