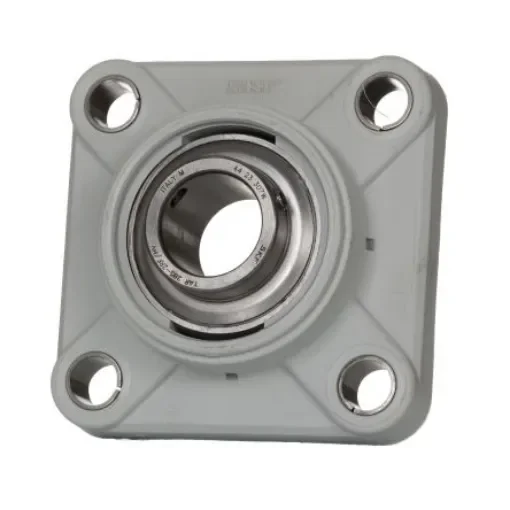

4 Hole Flange Bearing Unit, FYWK 20 YTH, 20mm ID

Inside Diameter = 20mm
Bearing Unit Type = Flange Bearing Unit
Number of Mount Holes = 4
Material = Composite Body
Length = 86mm
Width = 30mm
Depth = 37.3mm

The SKF FY housing shape (Y-bearing) ball bearing units consist of an insert bearing mounted in a housing which can be bolted to support surface. The insert bearing unit has 20mm inside diameter and 86mm overall length. It is based on sealed deep groove ball bearings in the 62 and 63 series but have a convex outer ring and in most cases an extended inner ring with a specific locking device, enabling quick and easy mounting onto the shaft.Cylindrical type bore
