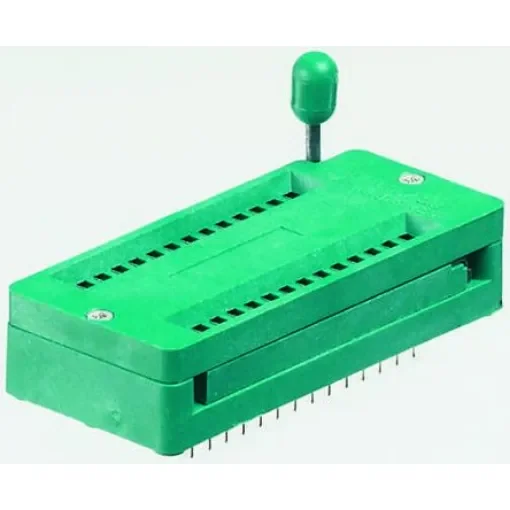

3M, Textool 2.54mm Pitch Vertical 48 Way, Through Hole Closed Frame ZIF IC Dip Socket, 1A - 248-1282-00-0602J

Number of Contacts = 48
Mounting Type = Through Hole
Pitch = 2.54mm
Row Width = 15.24mm
Frame Type = Closed Frame
Termination Method = Solder
Contact Plating = Gold over Nickel
Current Rating = 1A
Orientation = Vertical
Length = 88.1mm
Width = 11.9mm
Depth = 22.9mm
Dimensions = 88.1 x 11.9 x 22.9mm
Series = Textool°C

3M Textool™ Series 2.54mm ZIP DIP Sockets. Textool™ series 2.54mm ZIP DIP sockets which incorporate a lever actuated zero insertion force mechanism to reduce damage to device leads. These Textool ZIP DIP sockets provide a test and burn-in interface for dual in-line packages with a 2.54mm pin spacing and are ideally suited for use in high volume hand testing applications. When used as a test socket at room temperature 24°C these Textool™ DIP sockets willl last for 20,000 actuations. Durability: 20000 actuations (at 24°C) Temperature range -55 to +105°C
