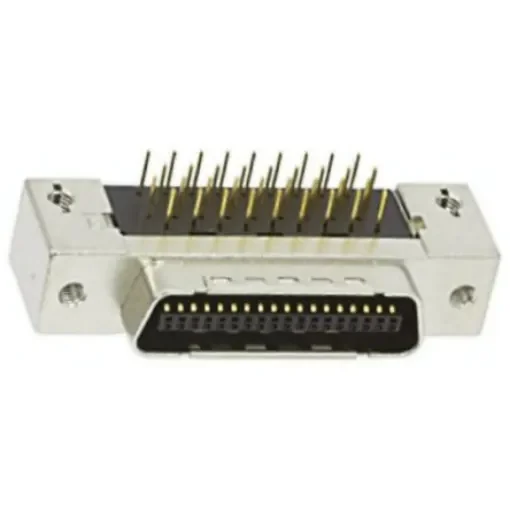

3M MDR 102 50 Way Right Angle Through Hole D-sub Connector Plug, 1.27mm Pitch - 10150-5212 PL

101 Series Plugs mate with 102 Series Receptacle, see stock numbers: ; 749-4890 749-4890 , ; 499-9752 499-9752 typical, for Board to Board applications. Metal Bodied 90° Panel Mount PCB Plugs (MDR). These 3M 101 Series Mini D Ribbon (MDR) Boardmount Shielded Plugs have a 0.050 inch (1.27 mm) pitch. The material of the main body of these 101 Series Mini D Ribbon (MDR) Boardmount Shielded Plugs is nickel plated zinc alloy. Features and Benefits. • Wiper-on-wiper contact for reliable repetitive plugging • Rugged die cast metal case construction • Screw lockdown for reliable PCB retention • Interface latch design for connection stability. Available in this range:. • ; 770-9050 770-9050 is a 20 pin PCB MDR Connector Plug • ; 770-9063 770-9063 is a 26 pin PCB MDR Connector Plug • ; 770-9072 770-9072 is a 50 pin PCB MDR Connector Plug • ; 770-9079 770-9079 is a 36 pin PCB MDR Connector Plug. 101xx- 7 xxx: Reverse D-sub 101xx-xx 1 x: M2.5 Panel and Screw locks 101xx-xx 4 x: #4-40 UNC Panel and Screw locks 101xx-xx B x: M2.5 Panel + Ground lock type 1 (3.8 mm) 101xx-xx E x: #4-40 UNC Panel + Ground lock type 1 (3.8 mm) 101xx-xxx 2 : 3.9 mm long solder Tail 101xx-xxxx PC : 0.76 µm Gold plating on contact area and Gold Flash plating on solder tails 101xx-xxxx PL : 0.2 µm Gold plating on contact area and Gold Flash plating with lubricant treatment on solder tails. What are D-Sub Connectors used for?. D-sub connectors are used in a variety of electronics applications, and are frequently found in heavy duty computing systems such as in hospital equipment and industrial computers. They are also common in personal and office computing systems. They are a robust connector that offer a secure connection, meaning they are suitable for use in more challenging environments. Why choose 3M?. 3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.
