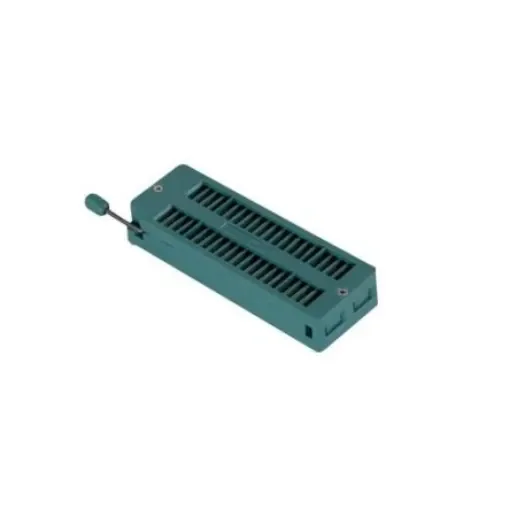

3M 2.54mm Pitch Vertical 28 Way, Through Hole Closed Frame ZIF IC Dip Socket, 1A - 228-1371-00-0602J

Number of Contacts = 28
Mounting Type = Through Hole
Pitch = 2.54mm
Row Width = 11.43mm
Frame Type = Closed Frame
Termination Method = Solder
Contact Plating = Gold over Nickel
Current Rating = 1A
Orientation = Vertical
Length = 62.6mm
Width = 11.6mm
Depth = 22.9mm
Dimensions = 62.6 x 11.6 x 22.9mm
Maximum Operating Temperature = +125°C

3M Textool Series 2.54mm Universal ZIF DIP Sockets. Textool™ series 2.54mm universal ZIF DIP sockets which incorporate a lever actuated zero insertion force mechanism to reduce damage to device leads. These Textool universal DIP sockets provide a test and burn-in interface for dual in-line packages with a 2.54mm pin spacing and feature an extra wide contact zone enabling the insertion of DIPs with a distance between rows from 7.62mm to 15.24mm. The socket contact point of these Textool universal DIP sockets is 2.29mm below the top surface of the socket. Durability: 20000 actuations (at 24°C) Temperature range -55 to +150°C
