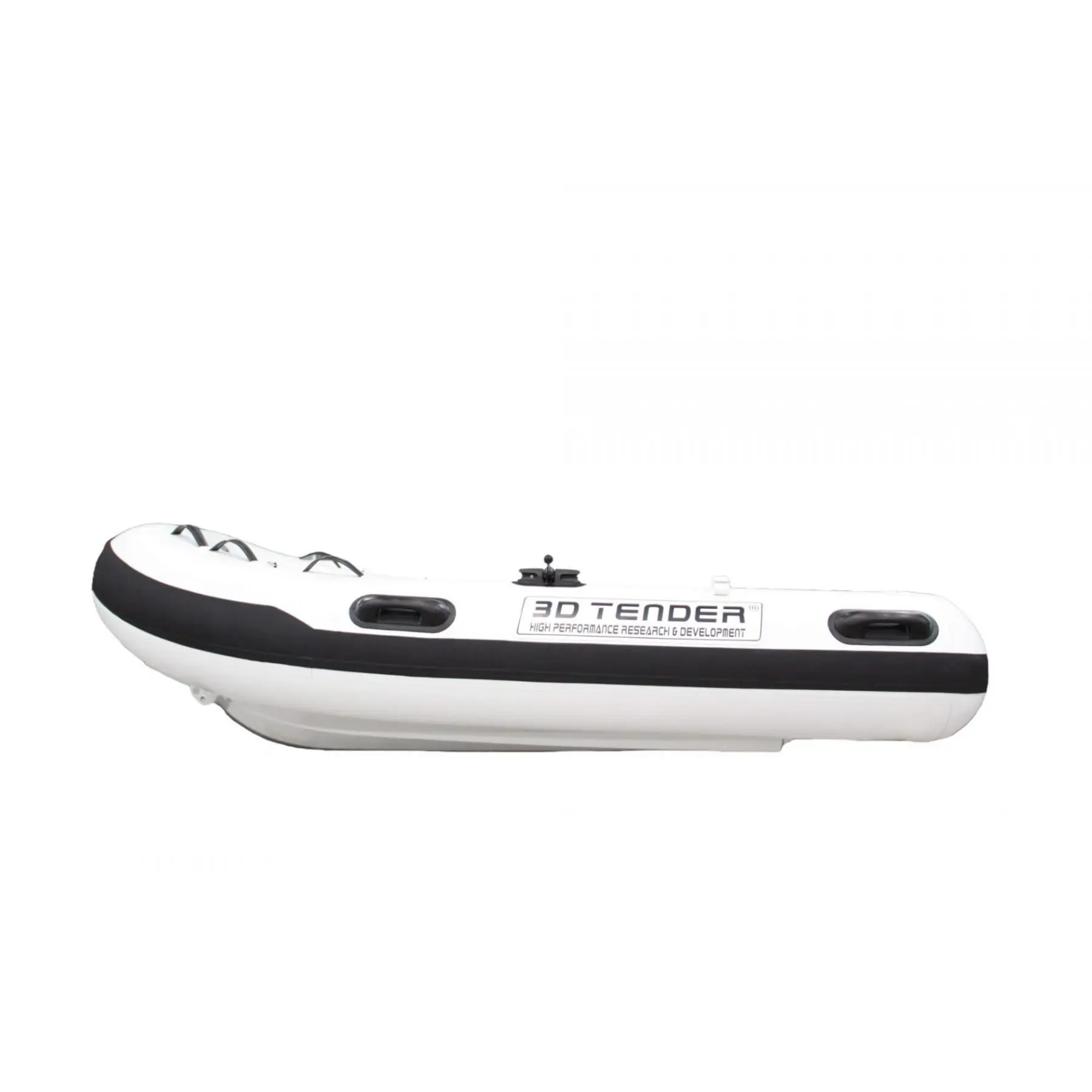

The Federlight is a series of ultra-lightweight, semi-rigid aluminium dinghies designed by 3D Tender, available in six models ranging from 2.45 m to 3.65 m in length. These dinghies are crafted to offer an exceptional boating experience by combining lightness with performance.
- Hull Design: The V-shaped rigid hull is constructed from high-quality, recyclable marine-grade aluminium. The hull is painted white using an environmentally friendly "powder coating" process, ensuring a smooth, durable finish and enhanced resistance to marine corrosion.
- Tube Construction: The floats are made from Valmex® PVC from Mehler, subdivided into three airtight inflation compartments. An optional black Sunbrella protective cover is available to shield the tubes from UV rays and impacts.
- Accessories: Standard equipment includes a front platform with a non-slip surface, fuel tank fixing straps, a pair of oars, rowing thole pins and oar locks for a double arrangement, fuel supply hose fixing attachments, a tube protection strip, non-slip deck covering, a composite bench, a storage bag under the bench, four carrying handles, four aluminium cleats, four lifting rings, four docking rings, one reinforced towing ring, a 3DTENDER aluminium plate for engine mounting, a repair kit, a pump, and a 3DTENDER accessories bag.
Technical Specifications:
| Model | Length (m) | Interior Length (m) | Width (m) | Interior Width (m) | Tube Diameter (cm) | Number of Air Chambers | Weight (kg) | Max Load (kg) | Max Engine Power (HP) | Design Category |
|---|
| 245 | 2.45 | 1.67 | 1.54 | 0.80 | 42 | 3 | 29 | 350 | 6 | D |
| 265 | 2.65 | 1.90 | 1.55 | 0.80 | 42 | 3 | 32 | 450 | 8 | C |
| 285 | 2.85 | 2.10 | 1.55 | 0.80 | 42 | 3 | 36 | 500 | 8 | D |
| 315 | 3.15 | 2.40 | 1.63 | 0.80 | 44 | 3 | 39 | 550 | 15 | C |
| 335 | 3.35 | 2.60 | 1.64 | 0.80 | 44 | 3 | 44 | 700 | 20 | D |
| 365 | 3.65 | 2.80 | 1.64 | 0.80 | 44 | 3 | 49 | 750 | 20 | D |
Materials:
- Hull: Recyclable marine-grade aluminium with powder-coated finish.
- Floats: Valmex® PVC from Mehler.
- Protective Cover: Optional black Sunbrella fabric.
Compatibility Information: The Federlight dinghies are compatible with short shaft outboard motors up to the specified maximum horsepower for each model. The 3DTENDER aluminium plate is designed for engine mounting.
