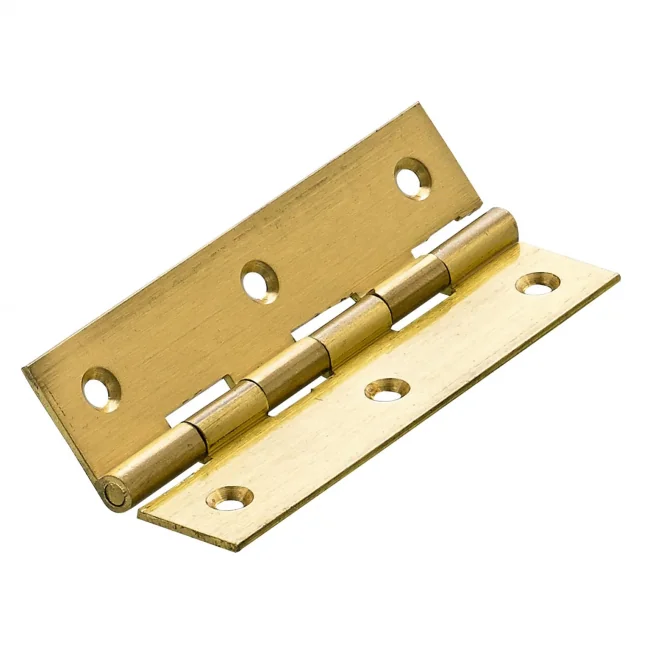

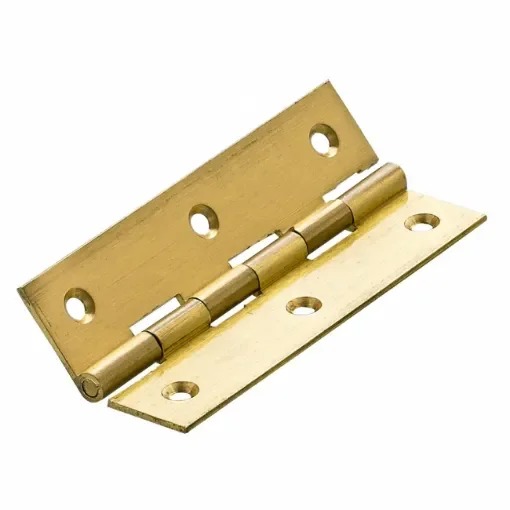

This 35x22 mm rectangular hinge is crafted from brass and features a rolled knot design, providing a discreet and durable solution for door and window applications.
- Material: Made from brass, offering high corrosion resistance and a polished appearance.
- Design: Rolled knot hinge design ensures a secure and concealed pivot point when the door is closed.
- Countersunk: Countersunk holes allow for flush mounting, enhancing the aesthetic appeal.
Technical Specifications
- Dimensions: 35 mm x 22 mm
- Countersink Diameter: 4 mm
- Screw Hole Diameter: 2 mm
- Countersink Depth: 0.8 mm
- Material: Brass
Materials
Brass: An alloy primarily composed of copper and zinc, known for its corrosion resistance, good electrical and thermal conductivity, machinability, and fatigue resistance.
Dimensions
- Overall Size: 35 mm (length) x 22 mm (width)
- Countersink Diameter: 4 mm
- Screw Hole Diameter: 2 mm
- Countersink Depth: 0.8 mm
Compatibility Information
This hinge is suitable for doors and windows where a discreet and durable hinge is desired. Ensure that the hinge size and design are compatible with the specific application requirements.
Additional Details
- Installation: Designed for easy installation with countersunk holes for flush mounting.
- Aesthetic: The rolled knot design provides a clean and unobtrusive appearance when the door is closed.
