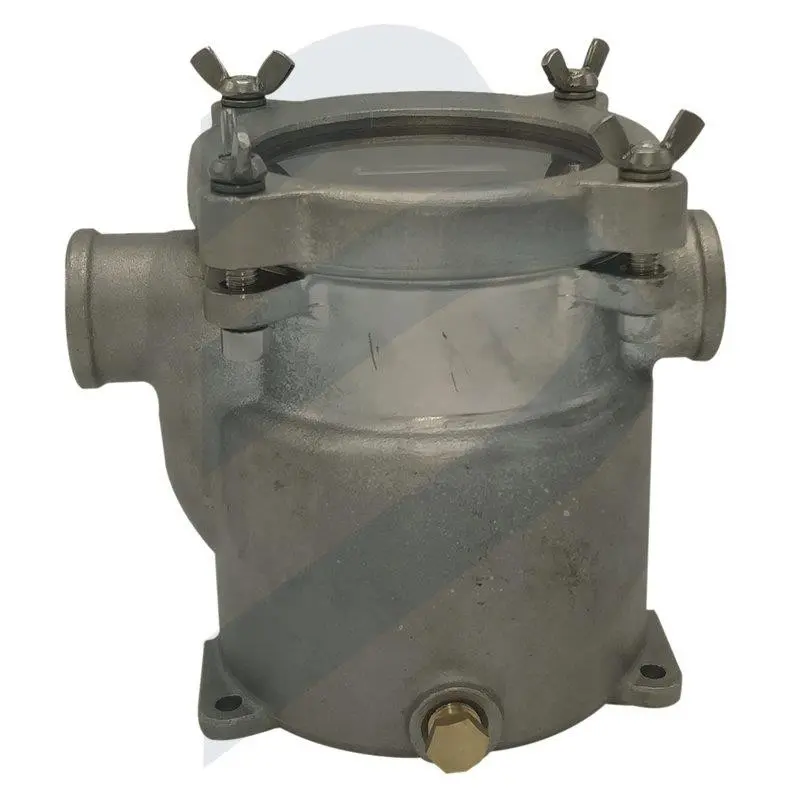

The 4” straight bottom filter made of 316 stainless steel is a robust solution to protect water intake lines on vessels and professional marine systems. Its design ensures optimal flow and maximum corrosion resistance, even in demanding saline environments.
Technical Features
- Diameter: 4 inches (approx. 100 mm)
- Material: Stainless steel 316 (AISI 316)
- Shape: Straight, for installation on horizontal planes
- Application: Bottom intakes, seawater inlet, cooling systems, bilge pumps
- Large filtering surface to prevent clogs
Advantages
- Resists saltwater corrosion
- Allows high flow while protecting against foreign objects
- Low maintenance need thanks to its robustness
Recommended Applications
- Installation on hulls of boats, yachts, and fishing vessels
- Marine engine cooling systems
- Water pumping for main or auxiliary services
Installation Tips
- Verify correct attachment to the hull and ensure complete sealing
- Install the filter in an easily accessible position for cleaning and maintenance
Maintenance
Periodically check the filter and clean any debris that may obstruct water flow. The 316 stainless steel offers a long lifespan with minimal maintenance, but regular inspections prevent performance loss.
| Specification | Detail |
|---|
| Material | Stainless steel 316 (AISI 316) |
| Diameter | 4” (approx. 100 mm) |
| Shape | Straight |
| Application | Bottom intakes, engine cooling, bilge pumping |
