Battery Coupler 310A Euromarine: an essential accessory for your boat
The Euromarine battery coupler allows you to easily connect and manage two batteries on your boat, ensuring a continuous and optimal power supply for your electrical equipment.
If you own a boat, you know how important it is to have a reliable and efficient power source. Whether it's to power your lights, your radio, your GPS, your water pump, or any other device, you don't want to risk running out of battery in the middle of the water. That's why the Euromarine battery coupler is an essential accessory for your boat. It allows you to connect two batteries in parallel, automatically linking them when one is charged and isolating them when one is discharged. This way, you can use one battery to start your engine and the other to power your equipment, without fearing that they will be completely drained. The Euromarine battery coupler is designed for voltages from 12 V to 48 V DC and can support a current of 300 A continuously and 500 A for 5 minutes. It features a 4-position rotary knob that allows you to choose the operating mode: 1 (battery 1 only), 2 (battery 2 only), 1+2 (both batteries connected), or OFF (both batteries isolated). The Euromarine battery coupler is easy to install, thanks to its 9 mm copper bolt contacts that ensure good conductivity. It is compact, with a footprint of 160 mm in diameter and 70 mm in thickness, and can be mounted on the surface or recessed, according to your preference. It comes with a blister pack containing the coupler, nuts, washers, and the user manual.
Features of the Euromarine Battery Coupler: an essential accessory for your boat
- Allows you to connect and manage two batteries in parallel
- Ensures a continuous and optimal power supply for your electrical equipment

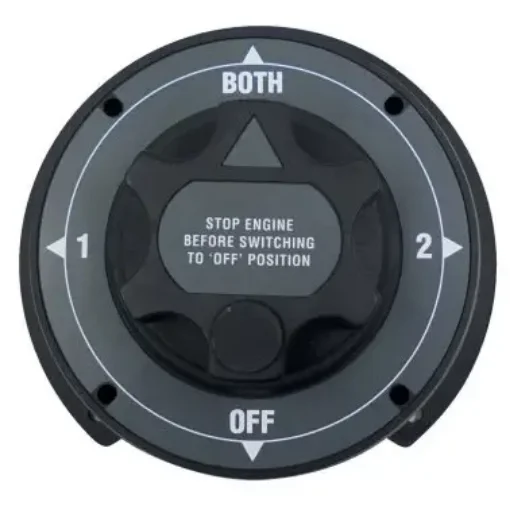

- Has a 4-position rotary knob to choose the operating mode
- Supports a current of 300 A continuously and 500 A for 5 minutes
- Easy to install, with 9 mm copper bolt contacts
Technical Information:
Voltage12 V to 48 V DC
Current300 A continuously, 500 A for 5 minutes
Number of positions4 (1-2-1+2-OFF)
Weight0.3 kg
CONNECTION: For connecting the cable to the contacts, use M10 soldering terminals
MOUNTING: - Footprint: ø 160 mm x thickness 70 mm - Drilling spacing: 104 mm - Diameter of fixing holes: 5 mm
Package Contents
The package contains the battery coupler, nuts, washers, and the user manual.
