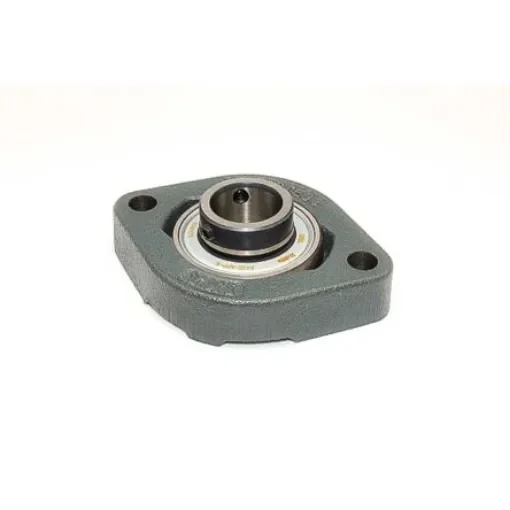

2 Hole Flange Bearing Unit, FLCTEY17-XL, 17mm ID
Durable 2 Hole Flange Bearing Unit with 17mm ID for reliable performance in various applications.
Manufacturer part number: FLCTEY17-XL
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Inside Diameter = 17mm
Bearing Unit Type = Flange Bearing Unit
Material = Cast Iron
Width = 24.4mm
Depth = 81mm
Mount Hole Size = 6.6mm
Mount Hole Centre-to-Centre = 58.7mm
INA housing units are available as plummer block, flanged and take-up housing units in numerous different designs. The units are ready-to-fit and comprise INA cast iron or sheet steel housings in which INA radial insert ball bearings are fitted. In order to ensure function and reliability under all operating conditions, the bearings and housings are matched to each other Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft, see link The units are used predominantly as locating bearings, but are also suitable as non-locating bearings under low loads and speeds The housings are screw mounted on the adjacent construction. Less stringent tolerances are sufficient for the screw mounting surfaces.
