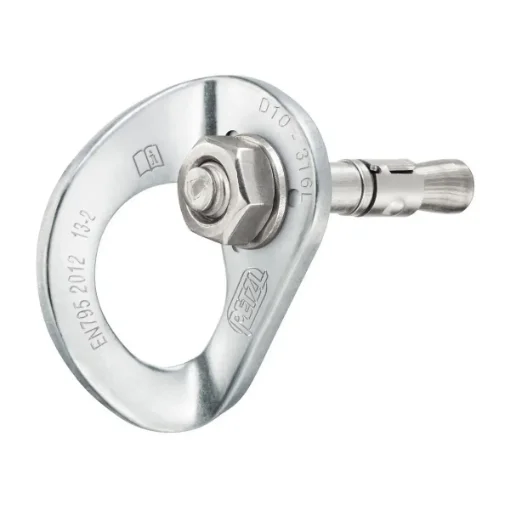

10mm Stainless Steel Heart Bolt - Petzl

Heart Plate Bolt Stainless Steel 10mm - PETZL

Set made of 316L stainless steel consisting of a Heart plate, a bolt and a nut.

Ease of clipping:

• Wide and ergonomic connection hole facilitating the clipping of the carabiner,
• The width of the hole allows for the installation of two carabiners simultaneously.
• Prevention of connector wear: the high material thickness of the plate, as well as the rounded edges of the connection hole, limit the wear of the connectors.
• Anti-rotation system of the plate: reliefs on the back face preventing the plate from turning during the setup of the anchoring, but also during use, under strong lateral loads.

• Diameter: 10 mm.
• Drilling length: 70 mm.
• Shear strength concrete 50 MPa: 25 kN.
• Pull-out strength concrete 50 MPa: 15 kN.
• This product has been manufactured in accordance with the requirements of regulation EC 2016/425 for PPE (category 3) following the standard : : CE EN 959 2018
• Weight: 110 g.
