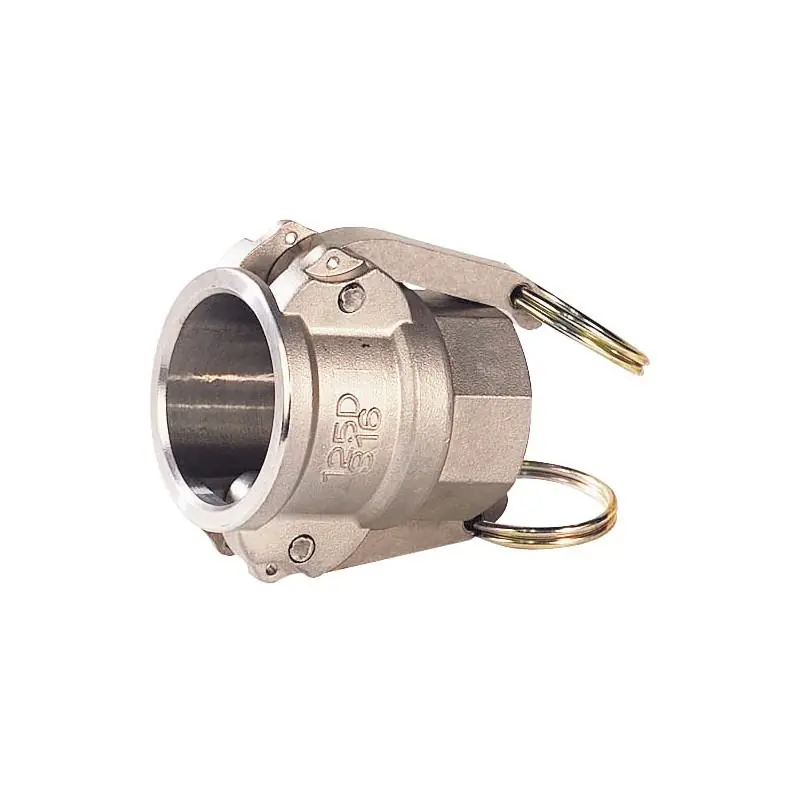

This 1/2" Stainless Steel Female Camlock Coupling with BSP Thread is designed for quick and secure connections in fluid transfer systems. It is suitable for applications involving water, compressed air, and saturated steam.
- Quick-Connect Mechanism: Allows for rapid and secure connections and disconnections without the need for tools.
- Corrosion Resistance: Constructed from stainless steel, offering excellent resistance to corrosion and ensuring durability in various environments.
- Temperature Range: Operates effectively within a temperature range of -10°C to +80°C.
- Pressure Rating: Suitable for operating pressures up to 11 bar (160 psi).
Technical Specifications
- Material: Stainless Steel EN 1.4408
- Seal Type: NBR (Nitrile Butadiene Rubber) seal
- Connection Type: Threaded BSP (British Standard Pipe) thread
- Coupling Type: Female camlock coupling
- Size: 1/2 inch (DN 15)
- Standards Compliance: Adheres to MIL-C-27487 standards
Materials
- Body and Cam: Stainless Steel EN 1.4408
- Seal: NBR (Nitrile Butadiene Rubber)
Dimensions
- Overall Length: Approximately 2 inches
- Adapter Length: Approximately 1.25 inches
- Distance Across Closed Cam Arms: Approximately 1.5 inches
- Distance Across Open Cam Arms: Approximately 2.5 inches
- Distance Across Flats: Approximately 1.1 inches
Compatibility Information
This Type D camlock coupler is typically used with Type A adapters but can also be used with Type E and F adapters of the same size. It is compatible with BSP threaded connections. Note that camlock couplings are not suitable for compressed air or steam service.
