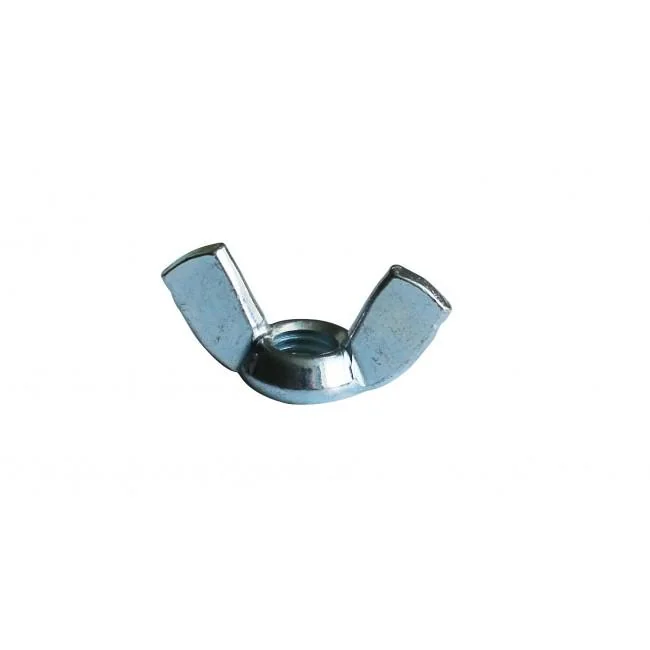

The Zinc Plated Wing Nut (American Form) is a fastening component designed for applications requiring frequent manual tightening and loosening without the need for additional tools. This type of wing nut is characterized by its straight, rectangular wings, distinguishing it from other wing nut designs.
Key Features:
- Design: American form with straight, rectangular wings for ergonomic hand tightening.
- Material: Steel with a zinc plating to enhance corrosion resistance.
- Thread Type: Metric threads, compatible with standard metric screws.
- Coating: Zinc plating provides protection against corrosion, making it suitable for various environments.
Technical Specifications:
| Nominal Diameter (d) | Pitch (mm) | Width Across Flats (D) | Height (h) | Wing Width (g) |
|---|
| M3 | 0.5 | 8 | 8.6 | 2.9 |
| M4 | 0.7 | 8 | 8.6 | 2.9 |
| M5 | 0.8 | 10.3 | 11 | 4.1 |
| M6 | 1 | 12.7 | 13.6 | 5.1 |
| M8 | 1.25 | 13.8 | 14.8 | 5.6 |
| M10 | 1.5 | 16.5 | 17.7 | 6.8 |
| M12 | 1.75 | 22.5 | 24.1 | 9 |
| M14 | 2 | 26.6 | 28.5 | 10.7 |
| M16 | 2 | 26.6 | 28.5 | 10.7 |
| M18 | 2.5 | 29.5 | 33.8 | 13.5 |
| M20 | 2.5 | 29.5 | 33.8 | 13.5 |
Materials:
- Steel: The base material offers strength and durability.
- Zinc Plating: Applied to enhance corrosion resistance, making the wing nut suitable for various environments.
Dimensions:
The wing nuts are available in various sizes, with dimensions as specified in the technical specifications table above.
Compatibility Information:
These wing nuts are designed to fit standard metric screws, ensuring compatibility with a wide range of applications requiring manual fastening.
