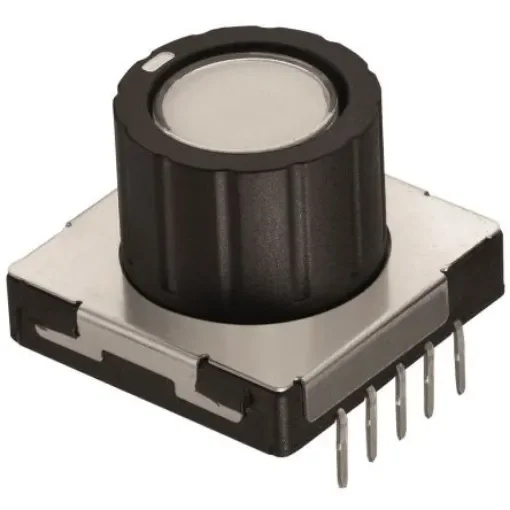

Wurth Elektronik, 8 Position 2CO Rotary Switch, 100 mA @ 12 V dc, Solder - 481RV12172100
Illuminated rotary switch with 8 positions and 100 mA @ 12 V dc for electromechanical applications.
Manufacturer part number: 481RV12172100
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Contact Configuration = 2CO
Contact Current Rating = 100 mA @ 12 V dc
Number of Switch Positions = 8
Number of Contacts = 18
Voltage Rating = 30V dc
Depth = 20.4mm
Width = 19.75mm
Dimensions = 19.75 x 20.4 x 14.45mm
Mounting Type = Through Hole
Mounting Hole Size = 0.7 (2) mm, 0.9 (16) mm, 1.7 (1) mm
Terminal Type = Solder
Application = Electromechanical
Contact Material = Brass with Silvermm
Illuminated Rotary Pushbutton Switch. An illuminated rotary pushbutton switch from Wurth that features a DPDT momentary pushbutton centre switch. The rotary switch has eight switch positions (1P8T). LED bicolour combination: red / bright green
