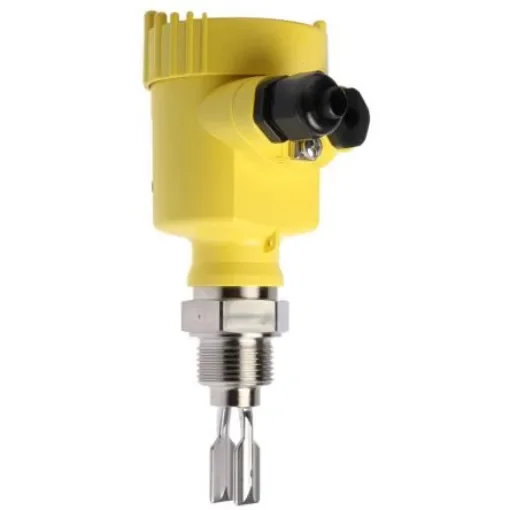

Vega VEGASWING 61 Series Vibrating Fork Level Switch, Relay Output, Horizontal, Vertical, Plastic Body - SWING61XXGAVXPRX

Maximum Current = 1 A dc, 3 A ac
Maximum Pressure = 64bar
Series = VEGASWING 61

Vega Vibrating Level SensorThe Vega Vibrating level sensor has a contactless electronic switch. It has a simple, yet robust measuring system and is easily unaffected by both the physical and chemical attributes of the liquid. This sensor is virtually unaffected by the chemical and physical properties of the liquid. It functions even under difficult conditions such as turbulence, air bubbles, foam generation, build-up, strong external vibration or changing product. Vibrating liquid/solid level probe -Squings. All these probes are maintenance-free and have an external LED switch status indicationFeatures and BenefitsSimple and robust measuring system Chemical-resistant stainless steel with PBT housing External LED switch status indication Unaffected by product density, viscosity, conductivity, dielectric constant or external vibrations V-free DPDT relay output maintenance-free, with optimum factory calibration Self-monitoring and selectable fail-safe (min/max) Viscosity ranges between 0.2mPa s and 1000mPa s Liquid density: 0.7 to 2.5g/cm3 Cable entry: 2 x M20 x 1.5ApplicationsIt is designed for industrial use in all areas of process technology and can be used in liquids For use with a wide range of liquids, pastes and slurriesCertificationsEMC Directive 89/336/EWG LVD 73/23/EWG
