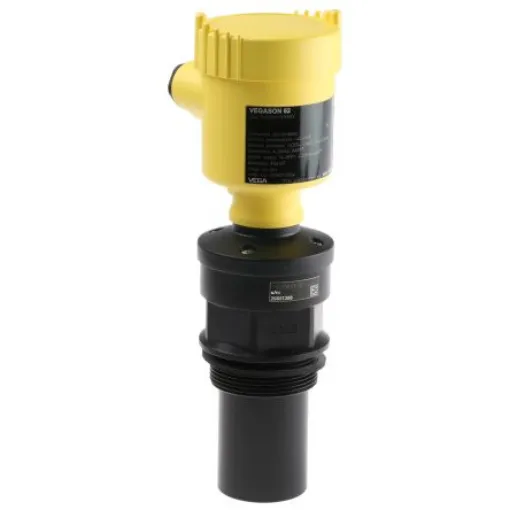

Vega VEGASON 62 Series Ultrasonic Level Probe, Plastic Body - SN62XXAGHKMX
Accurate ultrasonic level probe for continuous liquid measurement in various conditions.
Manufacturer part number: SN62XXAGHKMX
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Device Type = Ultrasonic
Body Material = Plastic
Minimum Operating Temperature = -40°C
Maximum Operating Temperature = +80°C
Maximum Current = 20 mA
Maximum Pressure = 2bar
Series = VEGASON 62
VEGASON 62, 0.4 to 8m Level Transmitter. Compact ultrasonic liquid level sensor with analogue current output for continuous measurement. Housing material PBT (plastic), transducer PVDF Measuring range 0.25 to 5m M20x2 cable entry Measurement is independent of density, opacity, conductivity or dielectric constant of liquid Rugged, maintenance-free and accurate, uses 'Echofox' technology 2-wire version, also available in 4 wire and without integral display/programming unit 3 bar maximum vessel pressure Output 0-20mA or 4-20mA Ingress protection IP66 All units are HART programmable Intrinsically safe version available, see stock no. ; 613-3415 613-3415
