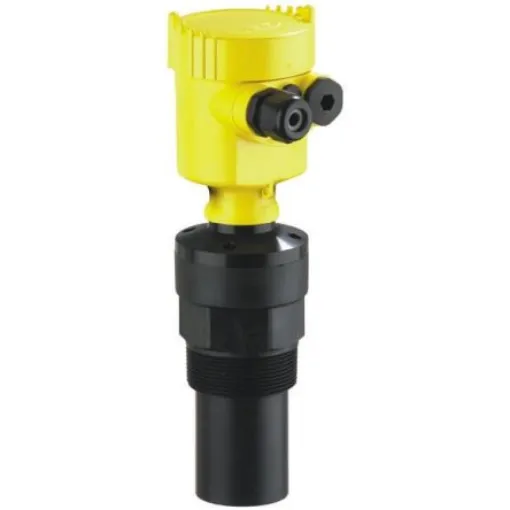

Vega VEGASON 61 Series Ultrasonic Level Probe, Plastic Body, ATEX-Rated - SN62.CXAGHKMX

Vega Ultrasonic Level SensorThe Vega compact ultrasonic liquid level sensor has an analogue current rating of 4mA to 20mA HART output and it is used for continuous measurement. Its measuring range is from 0.4m to 8m for liquid and 0.4m to 3.5m for solid. This sensor is also suitable for the detection of bulk solids in small vessels or silos. The non-contact measuring principle is unaffected by this product’s features and allows setup without a medium.Features and BenefitsPrice-favourable solution for simple applications Maintenance-free operation through non-contact measuring principle Process material is thread G2A/PVDF Reliable measurement, independent of product features Transducer of PVDF with EPDM seal and integrated temperature sensor for correction of the running time ECHOFOX signal processing with fuzzy-Logic Without adjustment with PLICSOM Protection is cable entry M20 x 1.5, without plug connection Measurement is independent of density, opacity, conductivity or dielectric constant of liquidApplicationsLiquids in average-size storage vessels or open basins Detection of bulk solids Level measurement in a standpipe Level measurement in basins Industrial use in water and waste water sector Level measurement and point level detection in the storage tank for wet strength agentCertificationsATEX IEC Shipbuilding FM CSA GOST PTB 03 ATEX 2213X IP66/IP68 (0,2bar) rated IP66/IP67 rated IP66/IP68 (1bar) rated
