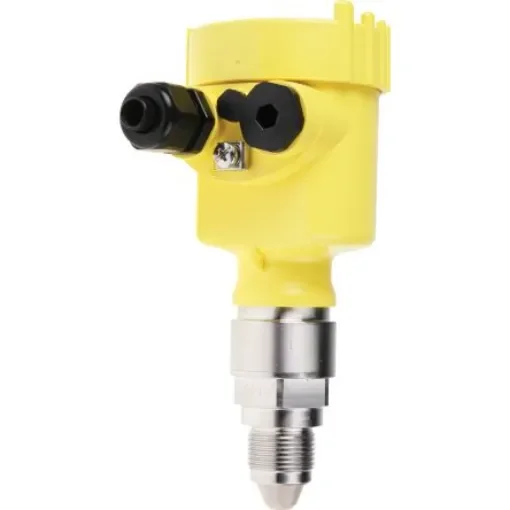

Vega VEGAFLEX 81 Series TDR Level Sensor, HART Output, Cable, Stainless Steel Body - FX81.IXETBFHXKMXX
The Vega TDR Level Sensor provides reliable, maintenance-free measurements for various liquids.
Manufacturer part number: FX81.IXETBFHXKMXX
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Device Type = TDR Sensor
Mounting Type = Cable
Switch Output = HART
Body Material = Stainless Steel
Cable Length = 75m
Minimum Operating Temperature = -40°C
Maximum Operating Temperature = +80°C
Maximum AC Voltage = 253V
Maximum Current = 20 mA
Maximum Pressure = 40bar
Gasket Material = EPDM Rubber, FFKM, FKM
Series = VEGAFLEX 81
Standards Met = GL, IEC, LRS
VEGAFLEX 81 Guided Wave Radar. The VEGAFLEX 81 is an economical solution for level and interface measurements. This level sensor measures all kind of liquids maintenance-free. Even in applications with vapour, build-up, foam generation and condensation, the VEGAFLEX 81 delivers precise and reliable measurements. The guided microwave enables a simple, time-saving and reliable setup Comprehensive diagnostic possibilities ensure a maintenance-free operation and hence a high plant availability Shortenable probes offer a simple standardisation and highest flexibility in the planning A 2mm diameter, 10M cable probe ( ; 9010261 9010261 ) and a 8mm Diameter, 2M solid probe ( ; 9010283 9010283 ) are also available
