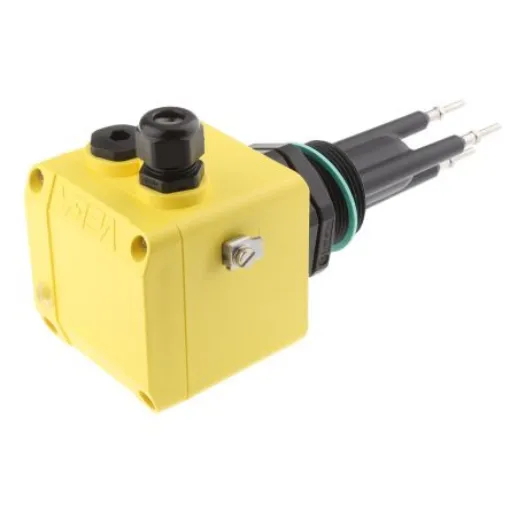

Vega VEGACON 66 Series Conductive Level Switch, Relay Output, Vertical, Plastic Body - KON66.XG3VPR

Vega Conductive Level SwitchThe Vega conductive level switch has a relay (SPDT) output. It is designed specifically for measuring conductive liquids and particularly useful for taking measurements in full or empty pipelines. The multiple rods that feature on this limit switch deliver reliable pump control. The exchangeable and adjustable probes reduce stock keeping and offer greater flexibility. It is made of high-quality plastic-coated aluminium.Features and BenefitsThe supply voltage ranging from 24VAC to 250VAC and 20VDC to 72VDC Process fitting/material is thread G1, DIN3852-A/PPN Alarm or pump control for controlling between two levels 3 electrode holders Modes: maximum detection, overfill (A) or min detection dry running protection (B) External LED switch status 3 electrode holders Selectable sensitivity between 100ohm and 300kohm Integration time adjustable up to 20 seconds Housing/Protection: PlasticApplicationsAlmost all the bulk solids applications Industrial useCertificationsCE certified
