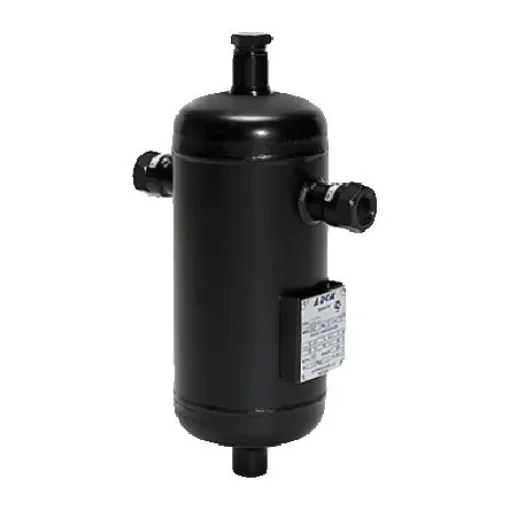

Valsteam ADCA Carbon Steel Steam Separator - 348536

Orientation = Vertical
Body Material = Carbon Steel

This product has been designed for use on water, steam and other gases which are in group 2 of the PED-European Equipment Directive 97/23/EC. Vertical Steam Separator S16/S. Vertical steam separator for the removal of moisture from steam and compressed air pipelines. Particles with heavier specific gravity, such as water and oil droplets, are separated from the steam and compressed air by centrifugal forces. The condensate collects at the bottom of the separator and can be drained using a suitable steam or compressed air trap. Features and Benefits. Several possibilities of installation No moving parts Carbon steel body. Application Information. For use with steam, compressed air and other gases. Materials. Body – EN10216-2/P235GH/1.0325 Heads – En10028-2/P265GH/1.0425 Inlet/Outlet Pipes – EN10216-2/P235GH/1.0325 Sockets Inlet/Outlet – ASTM A/105/1.0432 Sockets – ASTM A105/1.0432 Internals – EN10025-2/S235JR/1.0038
