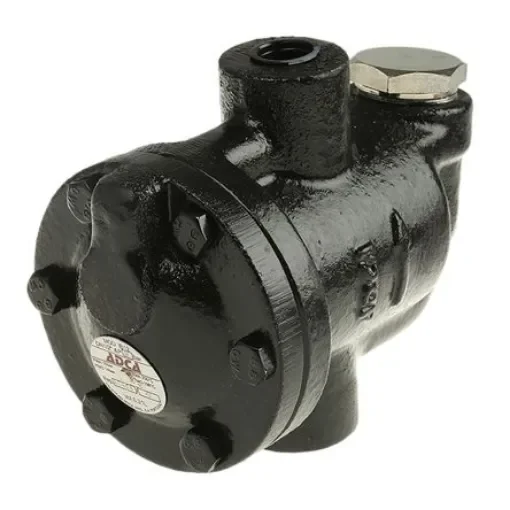

Valsteam ADCA 8 bar Iron Inverted Bucket Steam Trap, 1/2 in BSP Female - 7209245

Trap Type = Inverted Bucket
Connection = 1/2 in BSP Female
Orientation = Horizontal
Maximum Working Pressure = 8 bar
Maximum Temperature = +230°C
Body Material = Iron
Connection Gender = Female
Connection Size = 1/2in
Thread Standard or Connection Type = BSP

RS Pro Inverted Bucket Steam Trap IB12. These inverted bucket steam traps are recommended when the most important requirements are overall operating efficiency and trouble free service life. They are best suited for service at medium and high steam pressure due to operating intermittently, either wide open or tightly closed. Features and Benefits. Connections are female screw Horizontal installation Intermittent discharge Discharges condensate at steam temperature Unaffected by water hammer and vibrations Easy to maintain Built-in strainer
