Valsteam ADCA 40 bar Thermodynamic Steam Trap Set - 551278

Trap Type = Thermodynamic
Orientation = Horizontal, Vertical
Maximum Working Pressure = 40 bar
Gasket Material = Stainless Steel
Connection Gender = Female

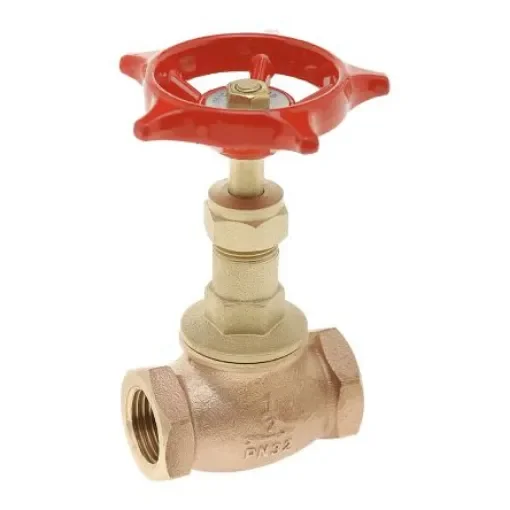

Trap Set with GV32B, IS140, RT25 and DT42S. Trap sets containing a globe valve, Y strainer, non-return valve and a float and thermodynamic steam trap. Bronze Globe Valve GV32B. GV32B bronze inline stop valve with a rising stem, PTFE renewable disk and high-quality packing. Female screwed ISO7/1Rp (BS21) Body design conditions PN32 198°C at 14 bar 100°C at 32 bar. Y Strainers IS140. The IS140 Y strainer has been designed to protect traps, regulating valves and piping from dirt. Female screwed ISO7/1Rp (BS21) Horizontal or vertical downstream installation. Non-Return Valve RT25. The RT25 stainless steel disc check valve specially designed for use with steam and hot condensate. Female screwed ISO7/1Rp (BS21) Low-pressure drop Horizontal or vertical installation. Thermodynamic Steam Trap DT42S. The DT42S thermodynamic steam trap is compact, lightweight and easy to install. They are an excellent choice for high pressure systems including steam tracing applications. Operates on superheated steam Seat and disc can easily be replaced Unaffected by waterhammer and vibrations Built-in easy to clean strainer Female screwed ISO7/1Rp (BS21) Flanged DIN Can be installed in any position. Application Information. For use with saturated steam, condensate, compressed air, water, oil and other fluids.
