Valsteam ADCA 10 bar SG Iron Thermostatic Steam Trap Set - 551274

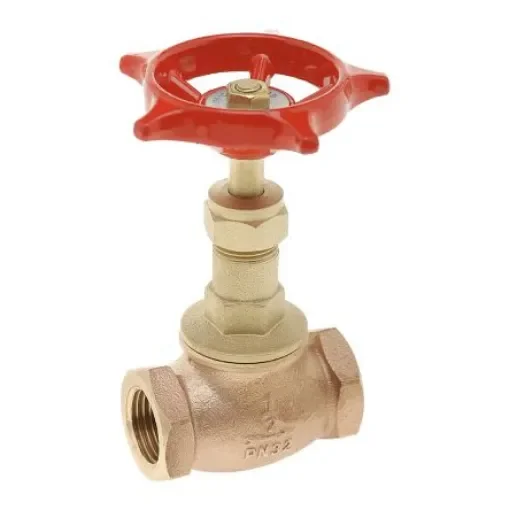

Trap Set with GV32B, IS140, RT25 and FLT17LC. Trap sets containing a globe valve, Y strainer, non-return valve and a float and thermostatic steam trap. Bronze Globe Valve GV32B. GV32B bronze inline stop valve with a rising stem, PTFE renewable disk and high-quality packing. Female screwed ISO7/1Rp (BS21) Body design conditions PN32 198°C at 14 bar 100°C at 32 bar. Y Strainers IS140. The IS140 Y strainer has been designed to protect traps, regulating valves and piping from dirt. Female screwed ISO7/1Rp (BS21) Horizontal or vertical downstream installation. Non-Return Valve RT25. The RT25 stainless steel disc check valve specially designed for use with steam and hot condensate. Female screwed ISO7/1Rp (BS21) Low-pressure drop Horizontal or vertical installation. Float ; Thermostatic Steam Trap FLT17LC. The FLT17LC float and thermostatic steam trap is designed for high and low-pressure steam heating and process equipment. Modulating discharge Discharges condensate at steam temperature Unaffected by pressure changes Excellent air discharge Female screwed ISO7/1Rp (BS21) Standard horizontal installation from right to left DN 1/2 to DN 3/4 – DN15 to DN20. Application Information. For use with saturated steam, condensate, compressed air, water, oil and other fluids.
