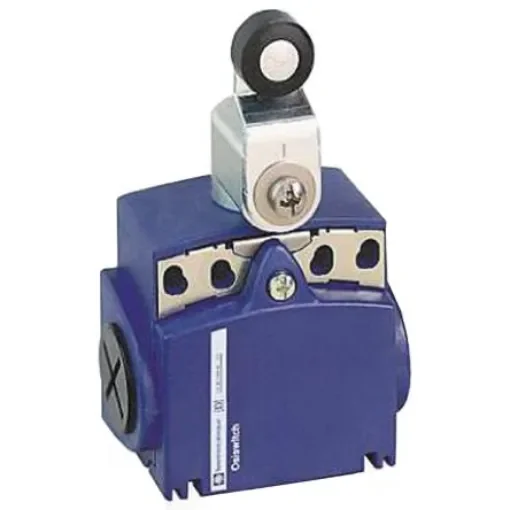

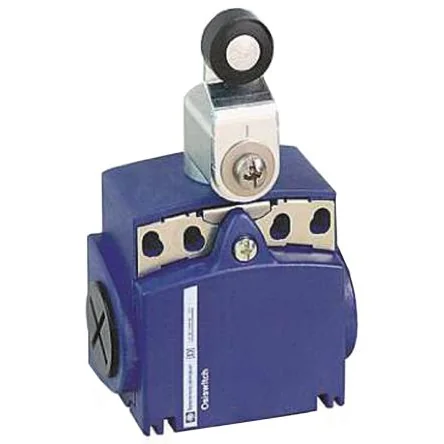

Telemecanique Sensors OsiSense XC Series Roller Lever Limit Switch, NO/NC, IP66, IP67, DPST, Plastic Housing, 240V ac - XCKT2118N12
Reliable roller lever limit switch for industrial applications with IP66/IP67 rating.
Manufacturer part number: XCKT2118N12
GTIN: 3389110306101
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Actuator Type = Roller Lever
Pole and Throw Configuration = DPST
Normal State Configuration = NO/NC
IP Rating = IP66, IP67
Maximum Current = 10A
Housing Material = Plastic
Maximum AC Voltage = 240V
Connection Type = 1/2 in NPT
Series = OsiSense XC
Action Type = Snap Action
Length = 51mm
Minimum Operating Temperature = -25°C
Mounting Orientation = FrontOperations
Telemecanique Limit Switches. Introducing Telemecanique XCKT range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle, predominantly used as part of a control system within industrial applications such as those listed before. How does a limit switch work?. The limit switches function through a contact proximity sensor device that features an actuator that is mechanically linked to a set of output contacts. When an object comes into contact with the actuator, the device then operates the contacts to make or break the electrical connection.
