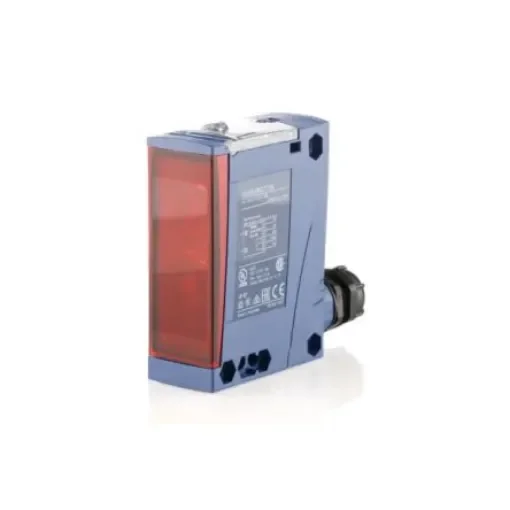

Telemecanique Sensors Multimode Photoelectric Sensor, Block Sensor, 1.3 m, 2 m, 11 m, 40 m Detection Range - XUX0ARCTT16
Versatile multimode photoelectric sensor with adjustable detection ranges for industrial applications.
Manufacturer part number:
XUX0ARCTT16
GTIN:
3389110168068
Ships to:
France, Monaco
For shipping outside these regions, please contact customer support.
Sensor Style = Block
Detection Type = Multimode
Detection Range = 1.3 m, 2 m, 11 m, 40 m
Output Type = Relay
Electrical Connection = 5 Terminal Screw
Terminal Type = Screw-Clamp
Light Source = Infrared
Maximum Current = 3 A, 500 mA
Response Time = <25 ms
Series = General Purpose Multimode°C
Standards Met = CE, CSA, UL
Telemecanique Photoelectric OsiSense XU. A range of OsiSense XU photo-electric sensors from Telemechanique. Features and Benefits. Four modes of detection in one unit. Easy set-up at the touch of a button. Self teach precise set-up 'multi-mode detection'. Sensing distance dependent on mode of operation. Through Beam Functionality using additional light source (thru-beam accessory). Programmable NO/NC switching. Connection: Screw clamp terminals or plug-in connector (M12 4 pin male). IP67 Protection rating. Operating temperature range -15 to +55 °C. Stock number ; 444-3619 444-3619 has a timing function. See 3D adjustment accessories for mounting brackets. Product Application Information. The OsiSense XU series from Telemechanique is ideal for use in small and medium industrial machines. They are also often used in various applications within packaging, handling, assembly, food and beverage, and conveying.
