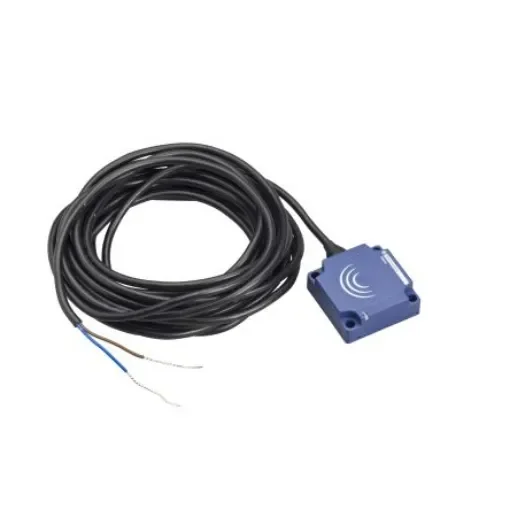

Telemecanique Sensors Inductive Block Proximity Sensor, 15 mm Detection 0-10 V, 24 V dc - XS9C111A1L2

The Schneider Electric XS series inductive proximity sensor is solely for the detection of metal objects. It basically comprises an oscillator whose windings constitute the sensing face. An alternating magnetic field is generated in front of these windings. When a metal object is placed within the magnetic field generated by the sensor, the resulting currents induced form an additional load and the oscillations cease. This causes the output driver to operate and, depending on the sensor type, a normally open (NO) or normally closed (NC) output signal is produced.Detector flush mounting acceptance Flush mountable Material Plastic Enclosure material PBT Type of output signal Analogue Wiring technique 3-wire [Sn] nominal sensing distance 15 mm Output circuit type DC Analogue output range 0..10 V Electrical connection Cable Cable length 2 m
