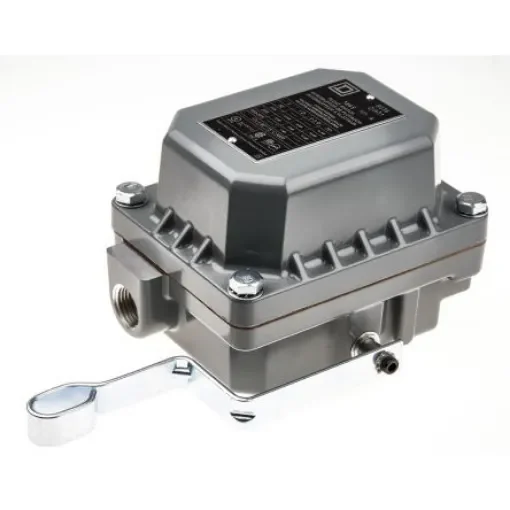

Telemecanique Sensors 9036 Series Pedestal Mount Cast Aluminium Float Switch, Float, 2 NC DPST, 230 (Single Phase) V, - 9036DW31

Device Type = Float
Mounting Type = Pedestal Mount
Switch Output = 2 NC DPST
Body Material = Cast Aluminium
Minimum Operating Temperature = -30°C
Maximum Operating Temperature = +105°C
Maximum AC Voltage = 230 (Single Phase) V, 475 (3 Phase) V
Maximum DC Voltage = 230V
Series = 9036

RS PRO Float SwitchThe RS PRO pedestal mount float switch has 2 NC DPST-Db contacts. It is used for an open tank or sump. The float switch has a vertical operating position.Features and Benefits• Made of aluminium • Maximum AC voltage 230V (Single Phase), 475V (3 Phase) • Maximum DC voltage is 230V • Operating rate is 60cyc/min • Service temperature ranges between -30°C and 105°CCertifications• CE certified • UL 508
