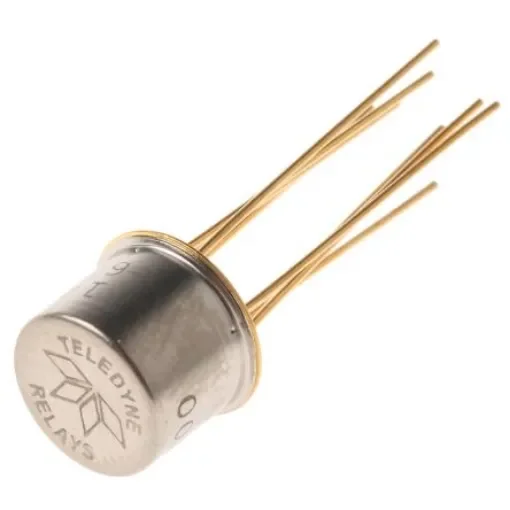

Teledyne PCB Mount RF Relay, 5V dc Coil, 50O Impedance, DPDT - RF300-5

Teledyne DPDT RF RelayThe Teledyne DPDT repeatable PCB mount RF relay is actuated with 5VDC coil voltage. This ultra-miniature relay is hermetically sealed and designed to provide improved RF signal repeatability over the frequency range with excellent signal integrity up to 10Gbps. It has a unique ground shield that isolates and shields each lead to ensure excellent contact-to-contact and pole-to-pole isolation. This ground shield provides a ground interface that results in improved high-frequency performance as well as parametric repeatability. Note: RF300 and RF303 are through-hole mount, GRF303 is a surface mount TO-5 relayFeatures and BenefitsCoil resistance is 50ohm Dimensions are 9.4mm x 9.4mm x 6.99mm Excellent resistance to shock and vibration Gold-plated metal alloy contacts High isolation between control and signal paths Metal enclosure for EMI shielding with high resistance to ESD Operating temperature ranging between -55°C and 85°C Uniframe design provides high magnetic efficiency and mechanical rigidityApplicationsRF attenuator switching Wireless LANCertificationsANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
