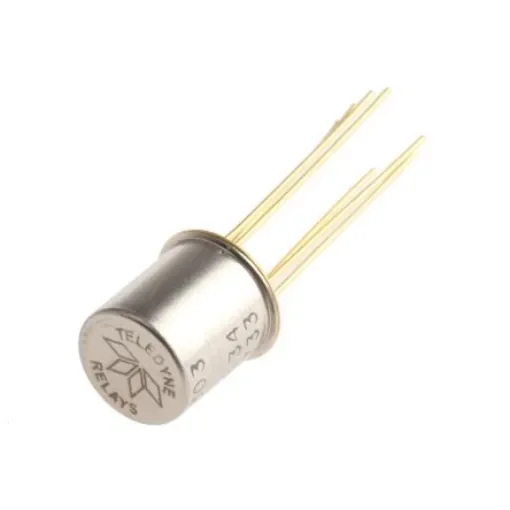

Teledyne PCB Mount RF Relay, 5V dc Coil, 3GHz Max. Coil Freq., DPDT - RF303-5

Maximum Coil Frequency = 3GHz
Coil Resistance = 100O
Contact Resistance = 100 mO
Contact Configuration = DPDT
Coil Voltage = 5V dc
Mounting Type = PCB Mount
Contact Voltage = 28V dc
Coil Power = 200mW
Height = 9.78mm

Teledyne PCB RF RelayThe Teledyne DPDT sensitive repeatable PCB mount RF relay is actuated with 28VDC coil voltage at a frequency of 3GHz. This ultra-miniature relay is hermetically sealed and designed to provide improved RF signal repeatability over the frequency range with excellent signal integrity up to 10Gbps. It has a unique ground shield that isolates and shields each lead to ensure excellent contact-to-contact and pole-to-pole isolation. This ground shield provides a ground interface that results in improved high-frequency performance as well as parametric repeatability. Note: RF300 and RF303 are through-hole mount, GRF303 is a surface mount TO-5 relayFeatures and BenefitsCoil resistance is 100ohm Dimensions are 9.4mm x 9.78mm Excellent resistance to shock and vibration Gold-plated contacts High isolation between control and signal paths Metal enclosure for EMI shielding with high resistance to ESD Operating temperature ranging between -55°C and 85°C Uniframe design provides high magnetic efficiency and mechanical rigidityApplicationsRF attenuator switching Wireless LANCertificationsANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
