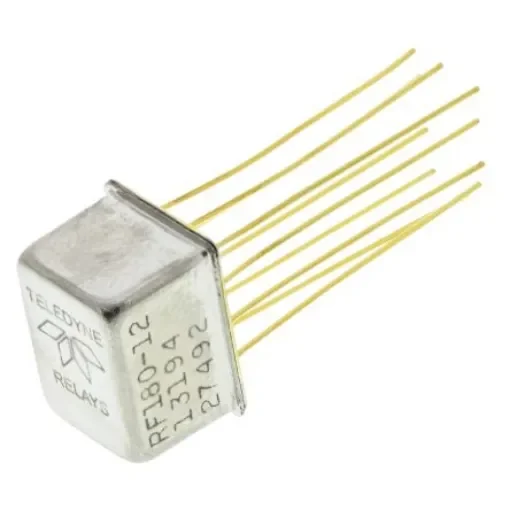

Teledyne PCB Mount RF Relay, 12V dc Coil, 6GHz Max. Coil Freq., DPDT - RF180-12

Mounting Type = PCB Mount
Dimensions = 8.51 x 11.05 x 7.62mm

Teledyne RF RelayThe Teledyne GRF180 series PCB mount DPDT ultra-miniature, magnetic latching relay is actuated with 12VDC coil voltage at a frequency of 6GHz. This hermetically sealed relay gives extremely low internal circuit losses for exceptional RF performance through and beyond the UHF spectrum and into the S-band. It can be operated with a short duration pulse and once the DPDT latching contacts have transferred, no coil power is required. This relay has a unique ground shield that isolates and shields each lead to ensure excellent contact-to-contact and pole-to-pole isolation. This ground shield provides a ground interface that results in improved high-frequency performance as well as parametric repeatability.Features and BenefitsBroad bandwidth Coil resistance is 500ohm Coil power is 290mW Dimensions are 8.51mm x 11.05mm x 7.62mm Excellent resistance to shock and vibration Gold-plated contacts ensure reliable DC and RF signal switching, as well as low and stable insertion loss High reliability and robust to high temperature solder reflow environments Metal enclosure for EMI shielding with high resistance to ESD Operating temperature ranging between -55°C and 85°C Positive mounting to RF ground plane Uniframe design provides high magnetic efficiency and mechanical rigidityApplicationsAutomated test equipment RF attenuators RF switch matrices SpacecraftCertificationsANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
