Key Features:

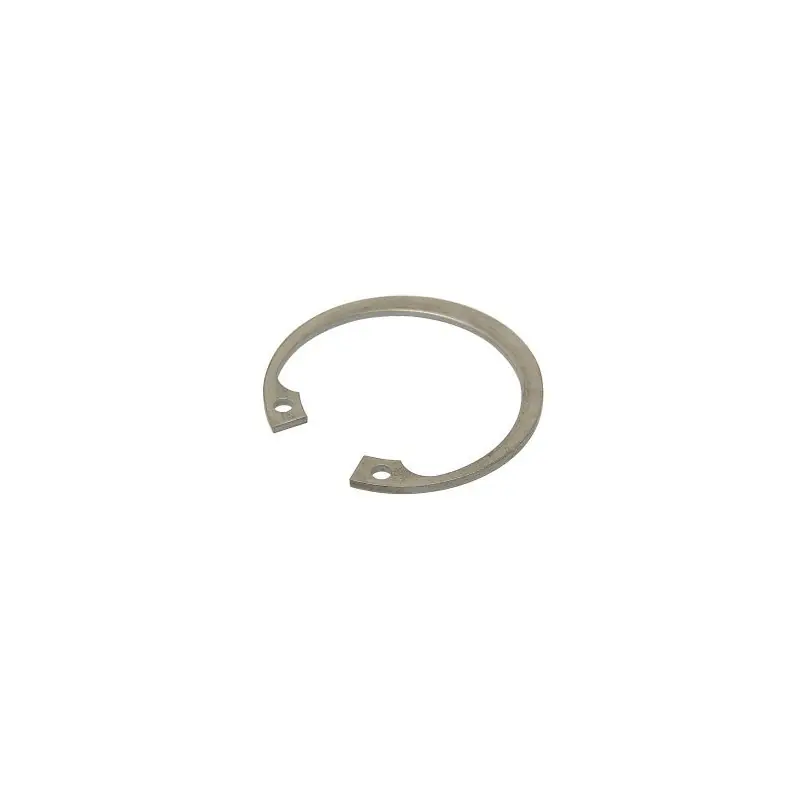

- Designed to fit into grooves within bores, providing a secure and reliable method to retain components in place.
- Made from stainless steel, offering enhanced corrosion resistance and durability.
- Complies with DIN 472 standards, ensuring consistent quality and performance.
Technical Specifications:
- Material: Stainless Steel A2 (Austenitic)
- Standard: DIN 472
- Diameter Range: 8 mm to 200 mm
- Thickness Options: 0.8 mm, 1 mm, 1.2 mm, 1.5 mm, 1.75 mm, 2 mm, 2.5 mm, 3 mm, 4 mm, 5 mm, 6 mm, 35 mm
- External Diameter: Slightly larger than the bore diameter to ensure a snug fit
- Coating: Typically uncoated; however, some variants may feature coatings like black oxide or zinc plating for additional protection.
Materials:
- Stainless Steel A2 (Austenitic)
- Alternative materials may include 65Mn steel, SS201, SS304, or SS316, depending on the manufacturer.
Dimensions:
- Inner Diameter: Varies based on the specific application and bore size
- Thickness: Available in multiple thicknesses to accommodate different groove dimensions
Compatibility Information:
- Compatible with bores that have corresponding grooves designed for internal retaining rings
- Suitable for applications in various industries, including automotive, machinery, and general engineering
Additional Details:
- Installation requires specialized tools designed for circlip assembly and disassembly
- Some variants may feature lug holes for easy installation and removal using appropriate pliers
