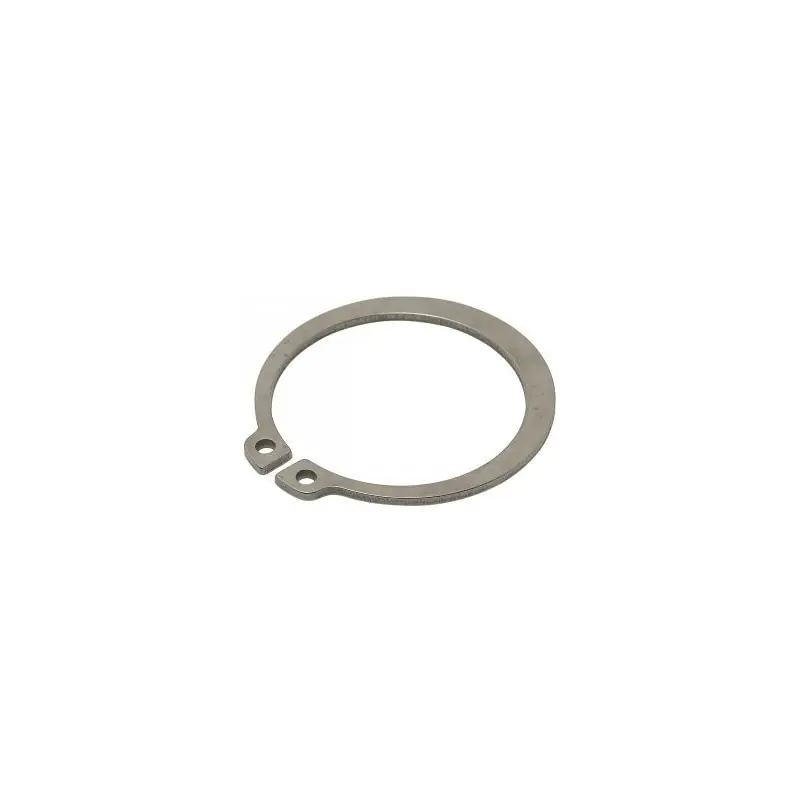

Key Features:
- Designed to secure components onto shafts, preventing axial movement.
- Made from martensitic stainless steel, allowing tempering for flexibility during assembly and disassembly.
- Not available in austenitic stainless steel grades (AISI 304 or 316) due to their inability to be tempered, which is necessary for the required flexibility.
Technical Specifications:
- Standard: Complies with DIN 471 standards.
- Material: Martensitic stainless steel.
- Finish: Plain or zinc-plated finishes are common.
- Size Range: Available in various sizes, typically from M3 to M500.
Materials:
- Martensitic stainless steel, which can be tempered to achieve the desired flexibility.
Dimensions:
- Specific dimensions vary based on the shaft size and application requirements.
Compatibility Information:
- Compatible with shafts that have grooves designed for external stop rings.
- Ensure the selected ring size matches the shaft diameter and groove specifications.
Additional Details:
- Fitting or removal is simplified by the use of circlip pliers.
