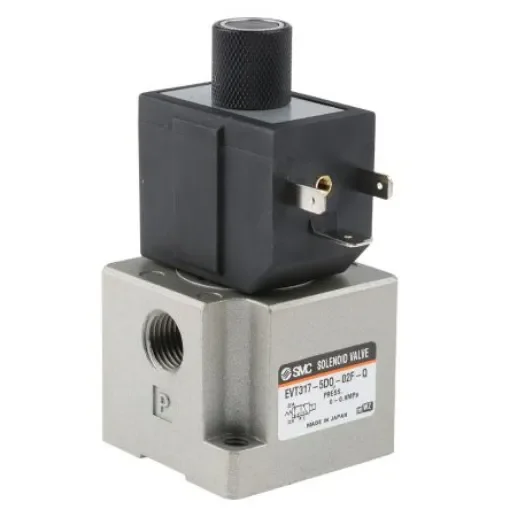

SMC 3/2 Pneumatic Solenoid Valve - Spring/Solenoid G 1/4 VT317 Series 24V dc - EVT317-5DO-02F-Q
High-performance SMC 3/2 pneumatic solenoid valve with 24V DC and 687.05NL/min flow rate.
Manufacturer part number: EVT317-5DO-02F-Q
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Function = 3/2
Connection Port Thread = G 1/4
Actuation Type = Spring/Solenoid
Manufacturer Series = VT317
Mounting Style = Stand-Alone
Solenoid Voltage = 24V dc
Solenoid Fitted = Yes
Number of Ports = 3/2
Body Material = Die Cast Aluminium
Maximum Flow Rate = 687.05NL/min
Solenoid Power Consumption = 6W
Minimum Operating Pressure = 0MPa
Minimum Operating Temperature = 0°C
Thread Standard = G
SMC Solenoid ValveThe SMC VT317 series 3/2 ports direct operated poppet solenoid valve has a supply voltage of 24VDC. This solenoid-operated spring return valve has a 1/4in G port connection. This valve is suitable for use in vacuum applications. This valve has a standard DIN 43650 electrical connection without a connector. Note: Includes electrical connectorsFeatures and BenefitsCoils may be orientated at 90° increments Maximum flow rate is 687.05NL/min Operating pressure ranges between 0MPa and 0.9MPa Operating temperature range between 0°C and 50°C Push button manual overrideCertificationsIP65 rated
