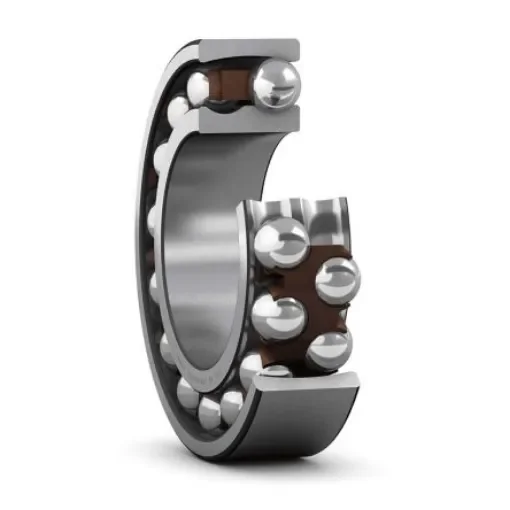

SKF 1311 ETN9/C3 Self Aligning Ball Bearing- Open Type 55mm I.D, 120mm O.D
Durable SKF self-aligning ball bearing with high load capacity and open type design.
Manufacturer part number: 1311 ETN9/C3
GTIN: 7316576624353
Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Inside Diameter = 55mm
Outside Diameter = 120mm
Race Width = 29mm
Ball Bearing Type = Self Aligning Ball Bearing
Sealing Arrangement = Open Type
Bearing Clearance = C3
Material = Steel
Ball Material = Steel
Cage Material = Non-metallic
Number of Rows = 2
Static Load Rating = 18kN
Dynamic Load Rating = 50.7kN
Bore Type = Parallel
Bearing Series = 3 Medium
Partial Bearing Code = 1311
The SKF self-aligning ball bearings with two rows of balls having bore diameter 55mm and outside diameter 120mm. It has a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. The bearings are insensitive to angular misalignment of the shaft relative to the housing which can be caused by shaft deflection.Cylindrical type bore Steel bearing
